Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- IG "OFF"
- Disconnect EWGA connector.
- IG "ON".

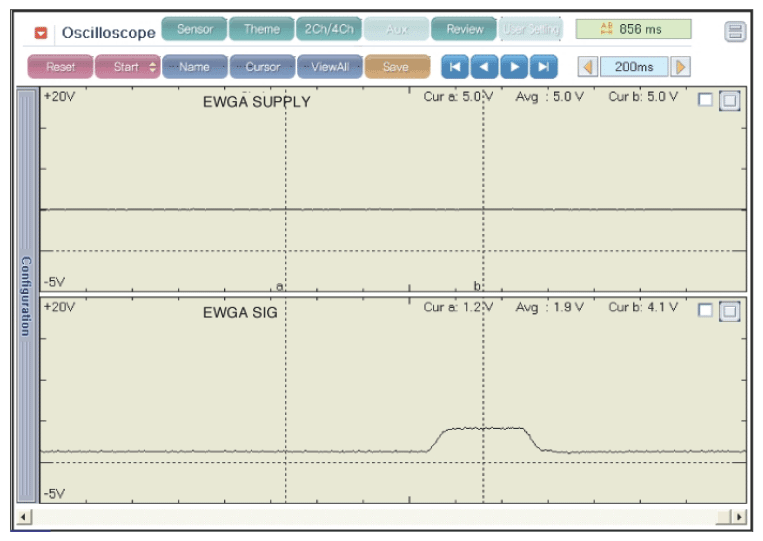

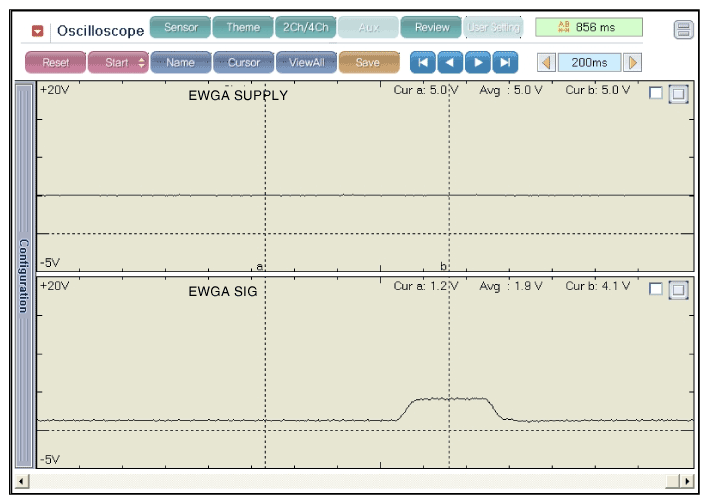

- Measure the voltage between the power terminal of the EWGA harness connector and chassis ground.
Specification: Approx. 5V
- Is voltage within specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
