OCV Actuation Test
WARNING: This page is about a different variant/trim than selected.
- Connect GDS and IG "ON"

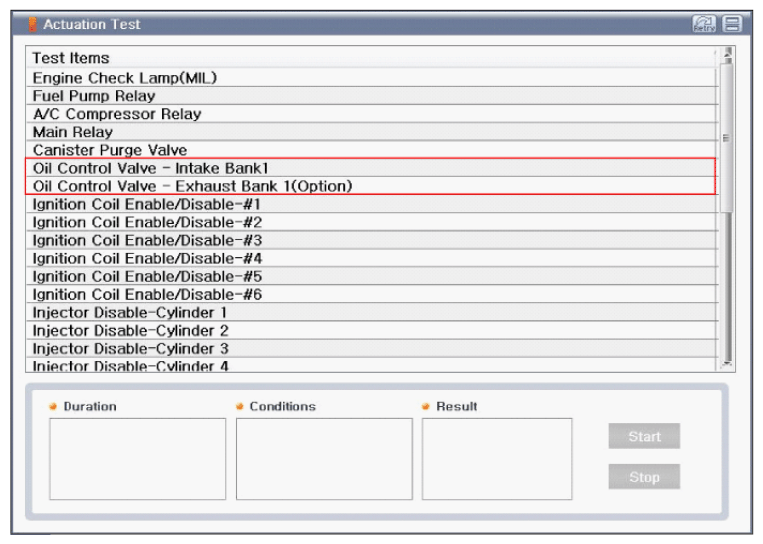

- Select "Exhaust Oil Control Valve" on the "Actuation Test"
- Activate "Exhaust Oil Control Valve" by pressing "START" button
(should hear a faint click from Oil Control solenoid Valve)
- Repeat this procedure 4 or 5 times to ensure oil control solenoid valve reliability
- Does OCV generate click sound during actuation test?
YES
- Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
