Signal Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- IG "OFF"
- Backprobe the signal terminal of the EWGA.
- Engine start.

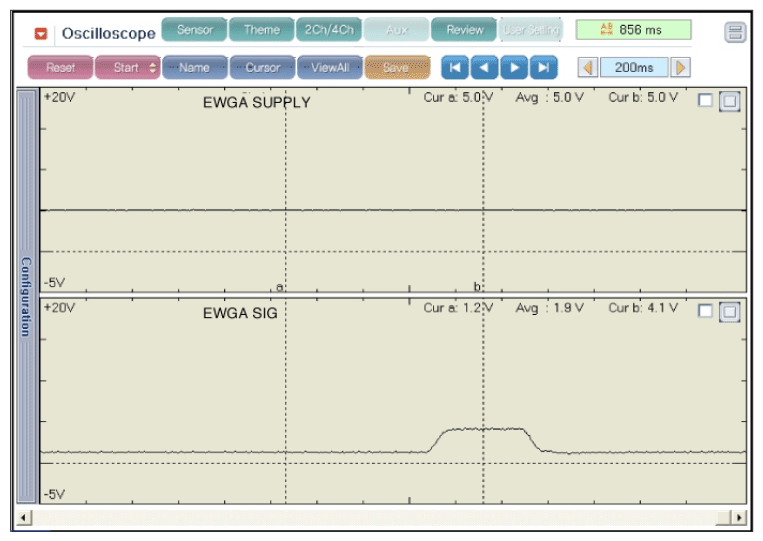

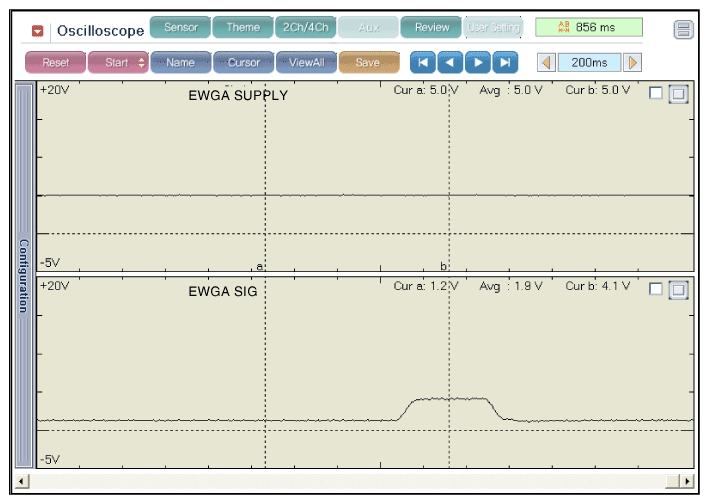

- Measure the voltage between the signal terminal of the EWGA connector and chassis ground.
Specification: Approx. 5V
- Is voltage within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
