OCV Actuation Test

WARNING: This page is about a different variant/trim than selected.

Connect GDS to Data Link Connector (DLC).
Turn on the ignition switch.

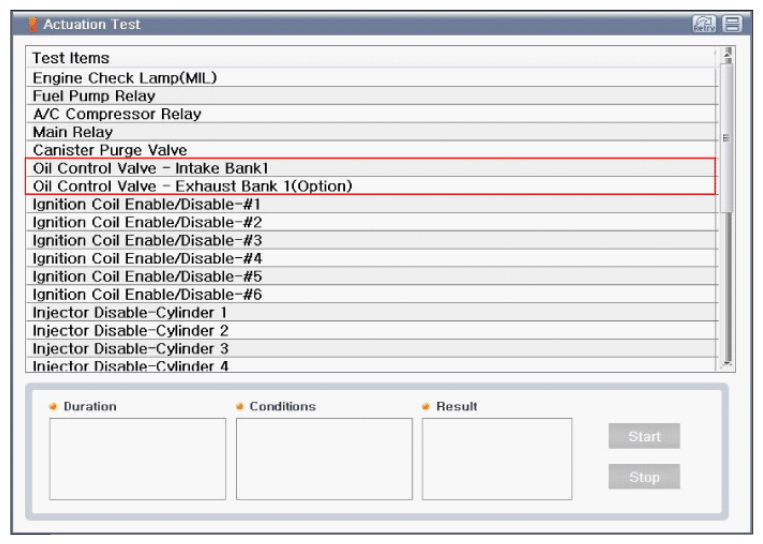

Select "Oil Control Valve-Intake Bank1" on the "Actuation Test"
Activate "Intake Oil Control Valve" by pressing "START" button.
Repeat this procedure 4 or 5 times to ensure oil control solenoid valve reliability.

Courtesy of HYUNDAI MOTOR AMERICA
Does OCV generate click sound during actuation test?
YES
- Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
