Check CAM PHASER with actuation test

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS and IG "ON".

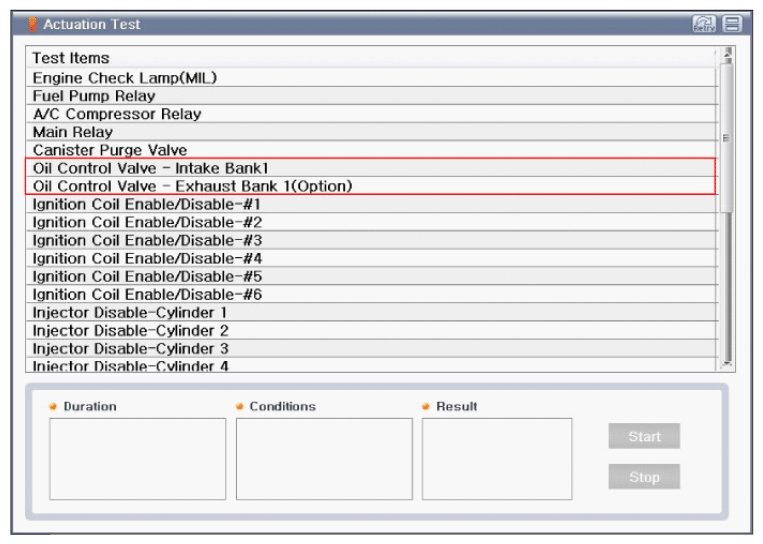

  2. Select "CAM PHASER INTAKE BANK 1" on the "Actuation Test".
  3. Select "Exhaust Oil Control Valve" on the "Actuation Test".
  4. Activates "CAM PHASER INTAKE BANK 1" by pressing "START" button.
  5. Activates "Exhaust Oil Control Valve" by pressing "START" button.
  6. Repeat this procedure 4 or 5 times to ensure CAM PHASER and valve control solenoid reliability.
    G14204089Courtesy of HYUNDAI MOTOR AMERICA
  7. Has a problem been found?

    YES

    • Substitute with a known - good CVVT or OCV and check for proper operation. If the problem is corrected, replace CVVT or OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
