Connector Assembly Status Test

WARNING: This page is about a different variant/trim than selected.

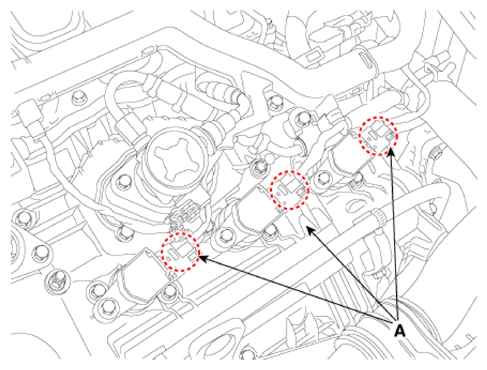

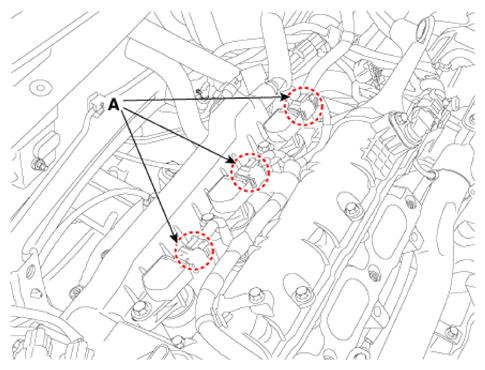

  1. Remove the connector (A) and reinstall it.
    G14207739Courtesy of HYUNDAI MOTOR AMERICA
    G14207740Courtesy of HYUNDAI MOTOR AMERICA

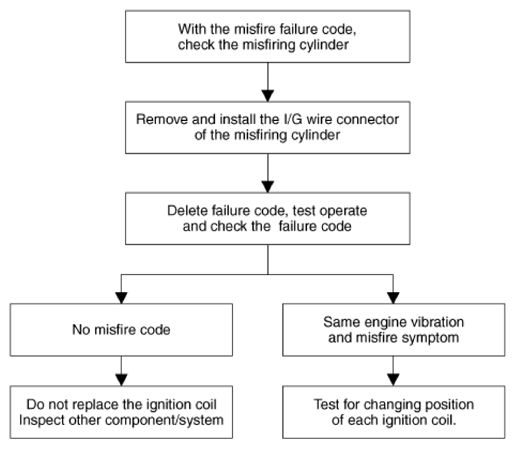

    G14207741Courtesy of HYUNDAI MOTOR AMERICA
