Section 2 (Ignition System - 3.3L)
>>
Ignition Coil
>>
Schematic Diagrams
>>

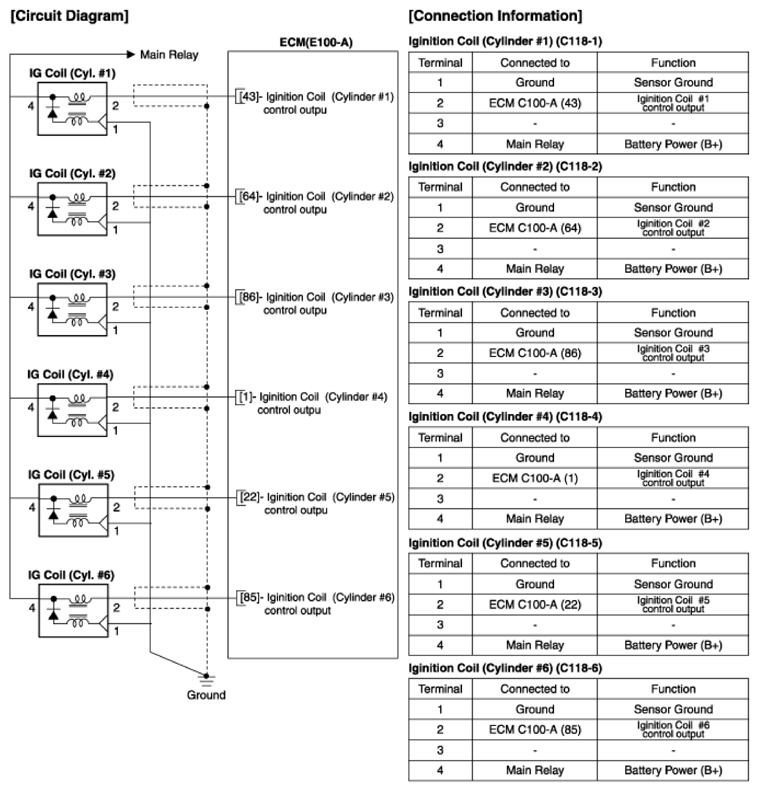

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
