Ignition Coil (Cylinder #5)
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the surge tank.
(Refer to Engine Mechanical System - "SURGE TANK ")

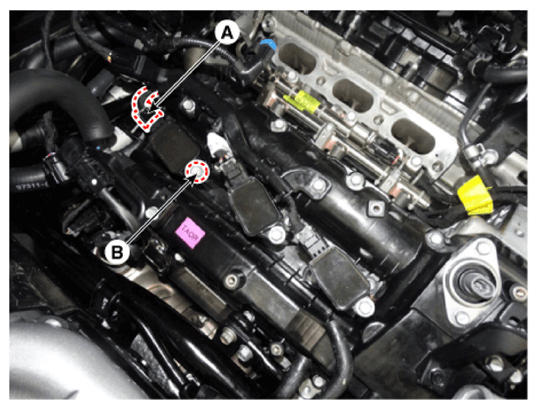

- Disconnect the ignition coil connector (A).
- Remove the bolt (B) and then remove the ignition coil from the engine.
