Ignition Coil (Cylinder #4)

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

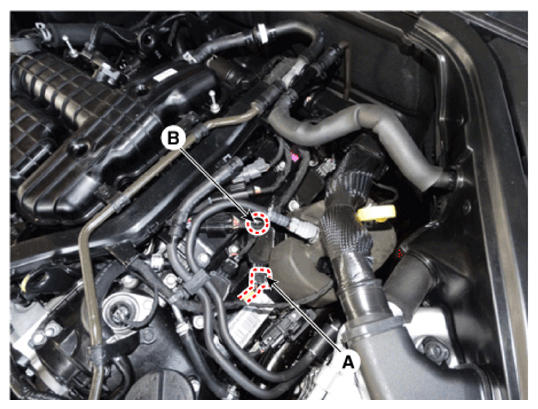

  2. Disconnect the ignition coil connector (A).
  3. Remove the bolt (B) and then remove the ignition coil from the engine.
    G14207749Courtesy of HYUNDAI MOTOR AMERICA
