AWD Upper Oil Pan
WARNING: This page is about a different variant/trim than selected.
- Remove the sub frame from the vehicle.
- Remove the Driveshaft and axle.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")
- Remove the front differential carrier.
(Refer to Driveshaft and Axle - "FRONT DIFFERENTIAL CARRIER ")
- Remove the Timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
- Remove the lower oil pan.
(Refer to Lubrication System - "OIL PAN ")
- Remove the air conditioning compressor.
(Refer to Heating, Ventilation, Air Conditioning - "COMPRESSOR ")
- Remove the adjustable oil pump connector, and after retaining clips (A), push the connector (B) inward.

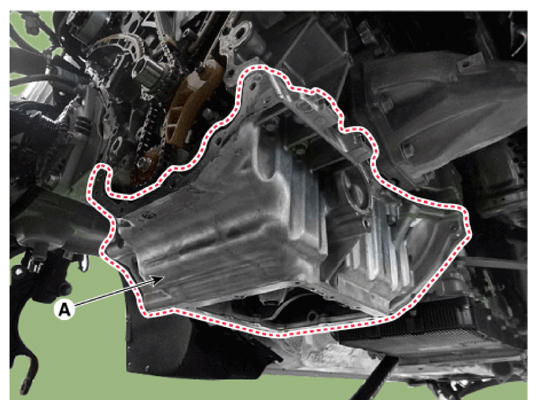

- Remove the upper oil pan (A).NOTE:

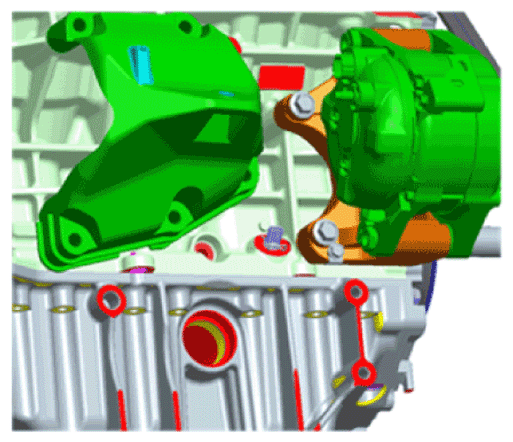

- Insert the blade of SST (09215-3C000) between the upper oil pan and lower oil pan.
- Cut off applied sealer and remove the lower oil pan.
- Remove the oil pump.
(Refer to Lubrication System - "OIL PUMP ")

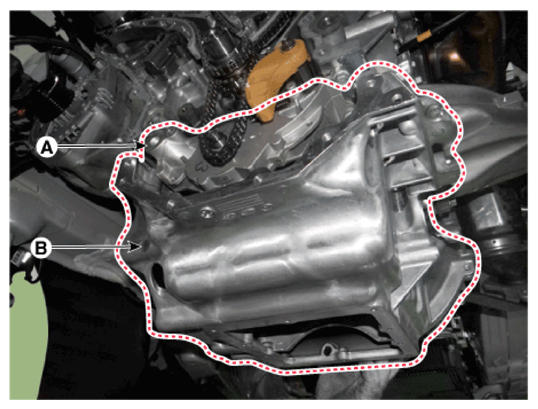

- Remove the oil pump (A), together with the upper oil pan (B).
