Lower Oil Pan

WARNING: This page is about a different variant/trim than selected.

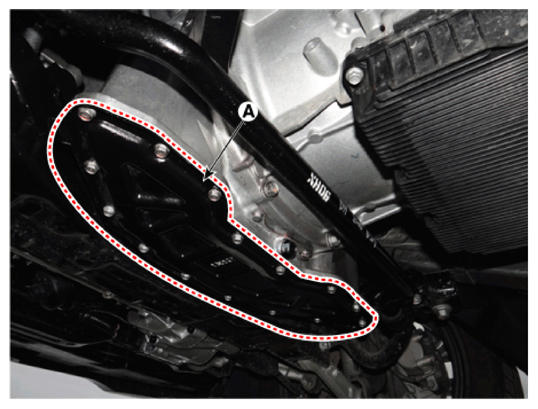

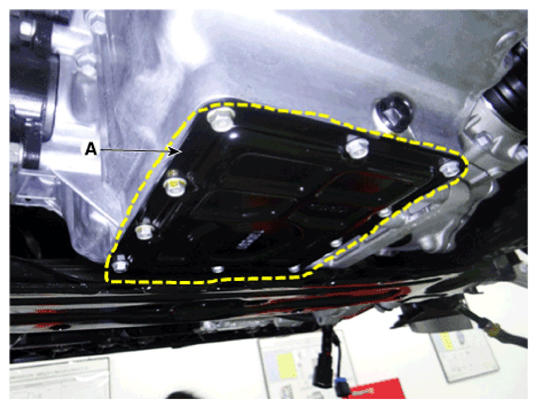

Install the lower oil pan (A).

Using a gasket scraper, remove all the old packing material from the gasket surfaces.

Before assembling the oil pan, the liquid sealant THREE BOND 1217H should be applied on oil pan. The assembly must be done within 5 minutes after the sealant is applied.

Bead width : 2.5 mm (0.1 in.)

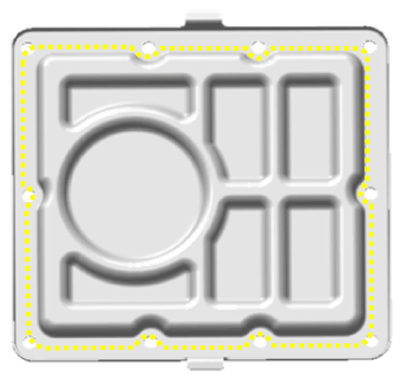

[2WD]

Courtesy of HYUNDAI MOTOR AMERICA

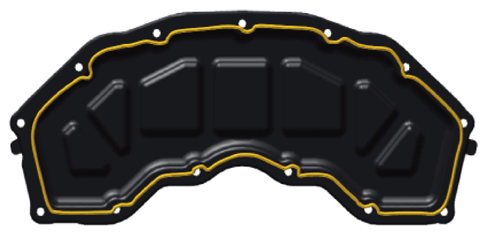

[AWD]

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Clean the sealing face before assembling two parts.
Remove harmful foreign matters on the sealing face before applying sealant.
When applying sealant gasket, sealant must not protrude into the inside of oil pan.
To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.
After assembly, wait at least 30 minutes before filling the engine with oil.

Install the oil pan (A).

Tighten the bolts in two or three steps.

[2WD]

Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

Courtesy of HYUNDAI MOTOR AMERICA

After assembly, wait at least 30 minutes before filling the engine with oil.
(Refer to Lubrication System - "ENGINE OIL ")
Install all other parts in the reverse order of removal.
