Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery (-) terminal from the trunk room.
- Remove the engine room cover and the radiator grill upper cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

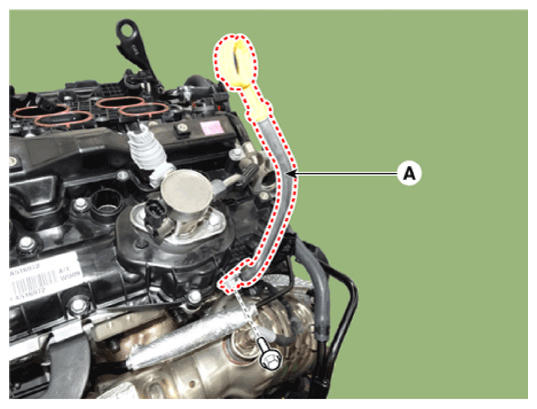

- Remove the oil level gauge rod (A).
Tightening torque:
42.2 - 46.1 N.m (4.3 - 4.7 kgf.m, 31.1 - 34.0 lb-ft)
NOTE:- When installing, apply engine oil to the O-ring and take care not to damage the O-ring.
- Do not reuse the oil level gauge O-ring.
- Do not reuse the water pipe o-ring.
- To install, reverse the removal procedure.
