Removal And Installation
WARNING: This page is about a different variant/trim than selected.

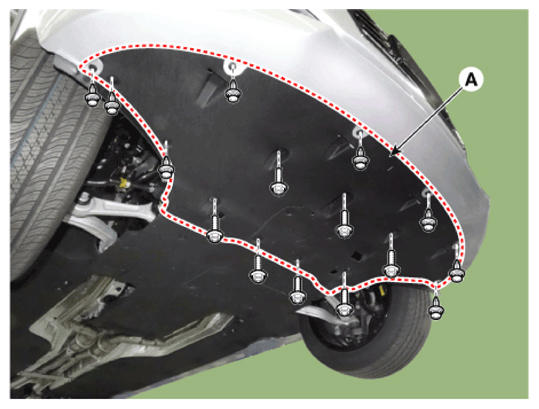

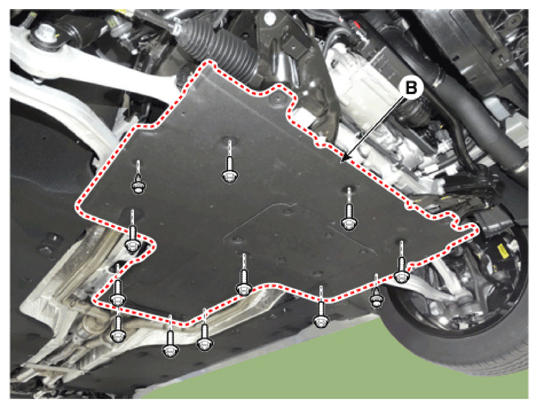

- Remove the front under cover (A). Remove the rear under cover (B).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

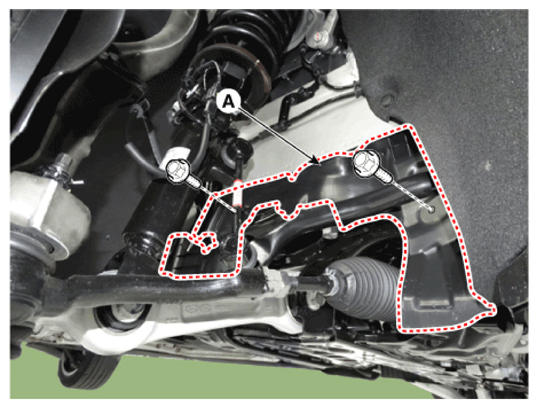

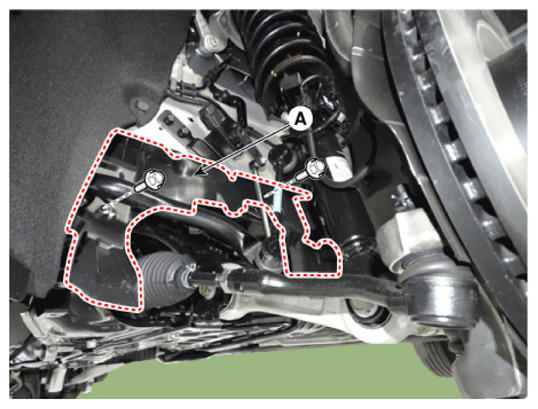

- Remove the RH/LH side cover (A).
[2WD]
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

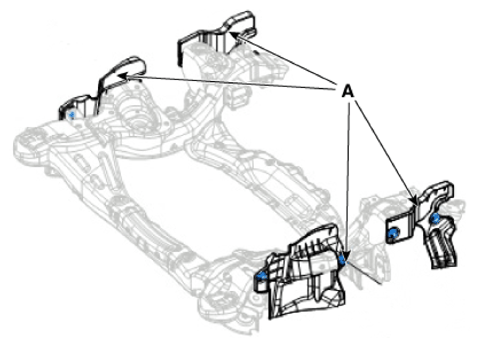

[4WD]
 Courtesy of HYUNDAI MOTOR AMERICA
|
- To install, reverse the removal procedure.
