Transmission Mounting Insulator
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal from the trunk room.
- Remove the engine under cover.
- Using a jack support the transmission assembly.

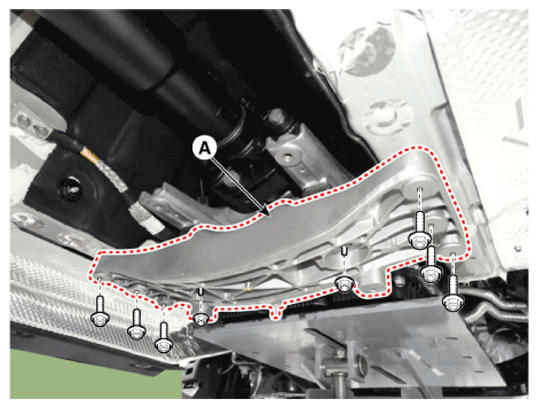

- Remove the transmission mounting bracket (A).
Tightening torque
Bolt: 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 Ib-ft)
Nut:
2WD: 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 Ib-ft)
AWD: 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

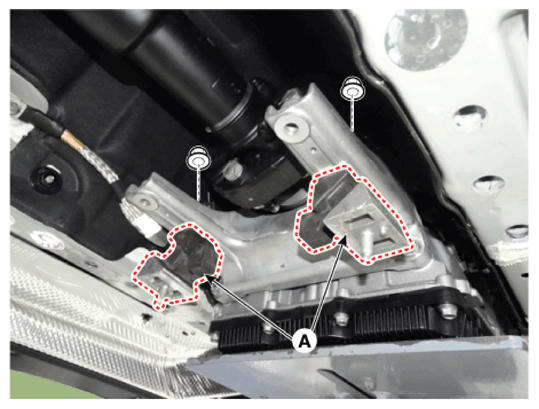

- Remove the transmission mounting insulator (A).
Tightening torque
2WD: 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 Ib-ft)
AWD: 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)
- To install, reverse the removal procedure.
