RH Engine Mounting Insulator

WARNING: This page is about a different variant/trim than selected.

Remove the sub frame assembly.
(Refer to Suspension System - "SUB FRAME ")

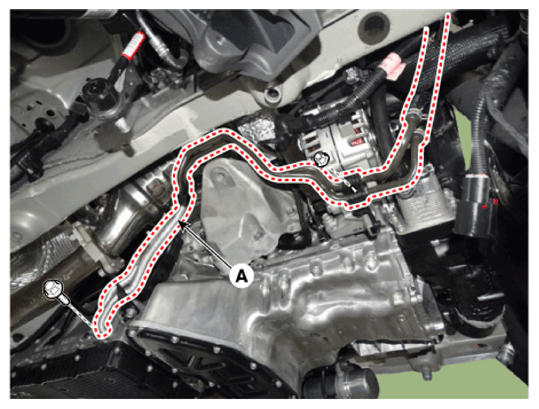

Remove the cooler pipe bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

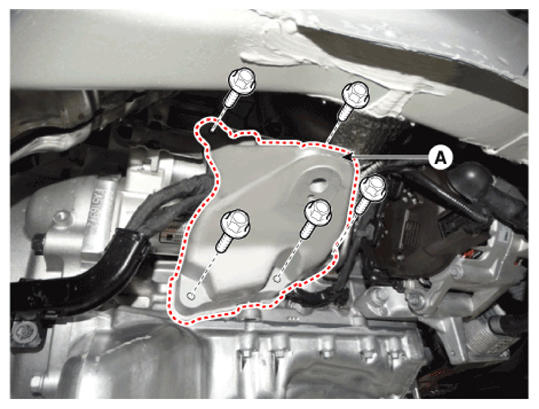

Remove the RH engine mounting support bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

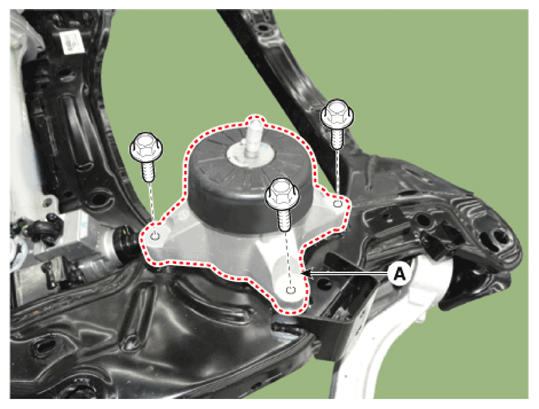

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
