LH Engine Mounting Insulator
WARNING: This page is about a different variant/trim than selected.
- Remove the sub frame assembly.
(Refer to Suspension System - "SUB FRAME ")

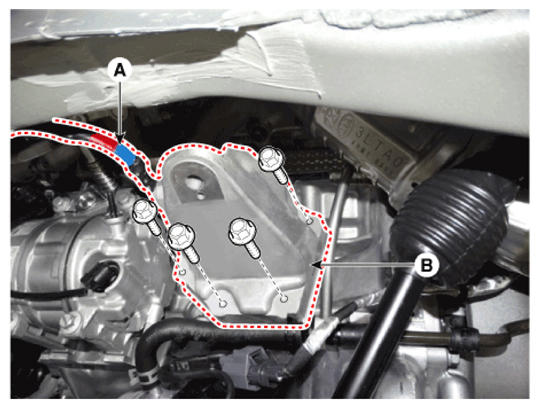

- Remove the engine ground cable (A), and then remove the LH engine mounting support bracket (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

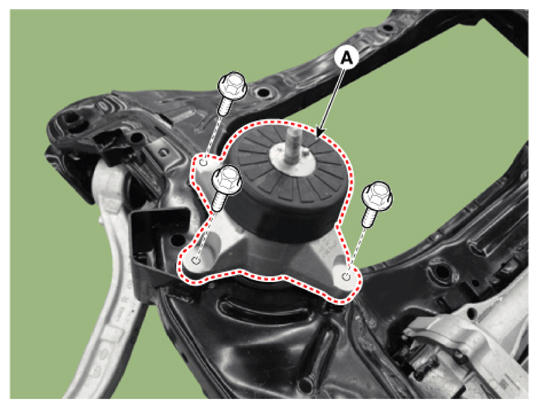

- Remove the engine mounting bracket (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)
- To install, reverse the removal procedure.
