Engine Room Cover

WARNING: This page is about a different variant/trim than selected.

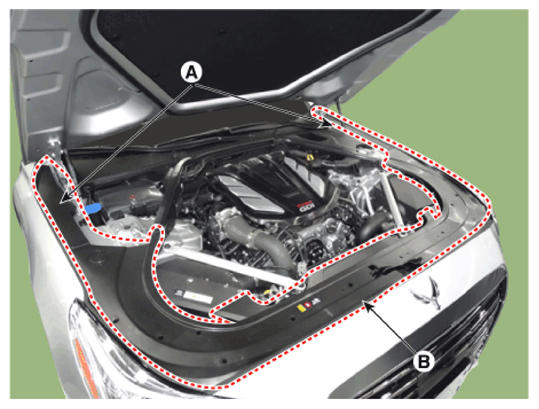

  1. Remove the rear engine room cover (A), and front engine room cover (B).
    G14207246Courtesy of HYUNDAI MOTOR AMERICA

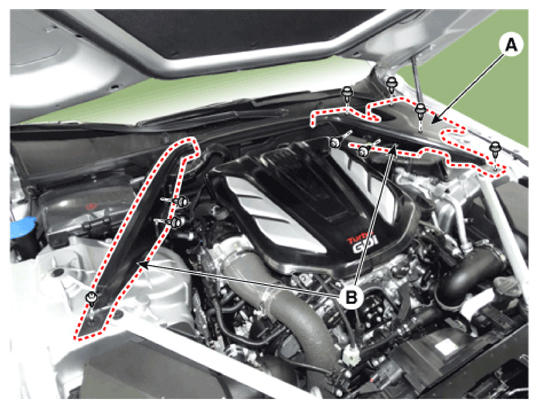

  2. Remove the ECU cover (A) and side cover (B).
    G14207247Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.
