General Inspection

WARNING: This page is about a different variant/trim than selected.

Check The Battery Terminals and Fuses
1. Check that the battery terminals are not loose or corroded.
2. Check the fuses for continuity.

Inspect Drive Belt

Visually check the belt for excessive wear, frayed cords etc.

If any defect has been found, replace the drive belt.

NOTE:

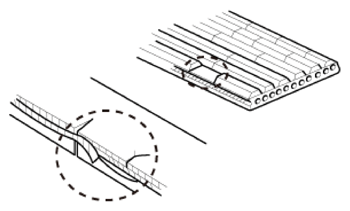

Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.

Courtesy of HYUNDAI MOTOR AMERICA

Adjust the drive belt tension.
(Refer to Engine Mechanical System - "DRIVE BELT ")
Visually check alternator wiring and listen to abnormal noises.
1. Check that the wiring is in good condition.
2. Check that there is no abnormal noise from the alternator while the engine is running.
Check discharge warning light circuit.
1. Warm up the engine and then turn it off.
2. Turn off all accessories.
3. Turn the ignition switch "ON". Check that the discharge warning light is lit.
4. Start the engine. Check that the light is lit.
  If the light does not go off as specified, conduct the trouble shooting procedure for the discharge light circuit.
