Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

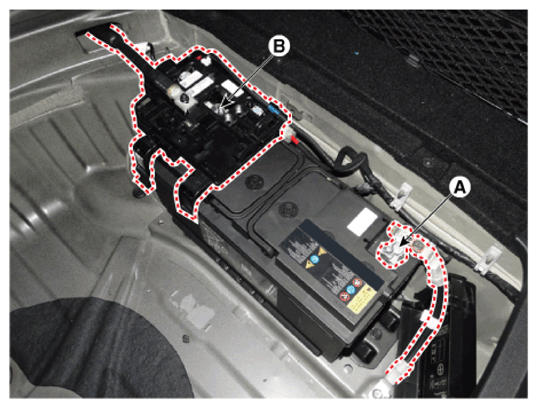

  1. Remove the battery negative terminal (A) and positive terminal (B).
    G14207771Courtesy of HYUNDAI MOTOR AMERICA

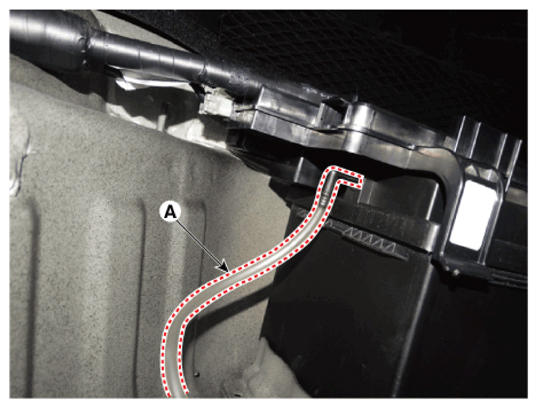

  2. Disconnect the vent hose connector (A) from the vent hose hall.
    G14207772Courtesy of HYUNDAI MOTOR AMERICA

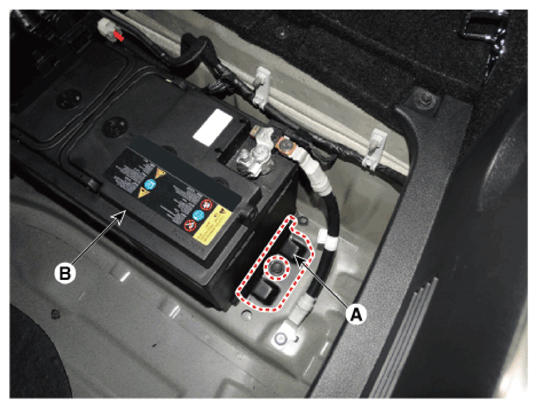

  3. Remove the mounting bracket (A) and then remove the battery (B).
    G14207773Courtesy of HYUNDAI MOTOR AMERICA
