Bank 2

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

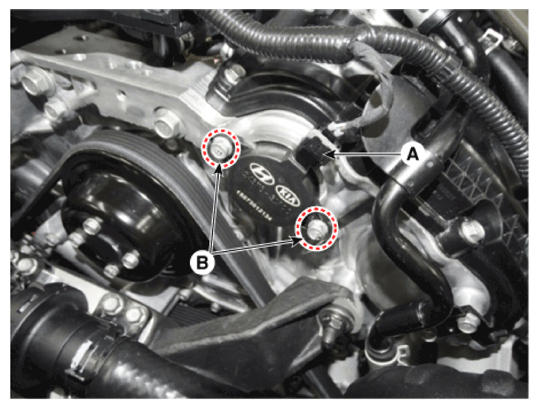

  2. Disconnect the variable force solenoid connector (A).
  3. Remove the installation bolt (B), and then remove the variable force solenoid (VFS) from the engine.
G14233180Courtesy of HYUNDAI MOTOR AMERICA
