Section 10 (Engine Control System - 3.3L)
>>
Manifold Absolute Pressure Sensor (MAPS)
>>
Troubleshooting
>>

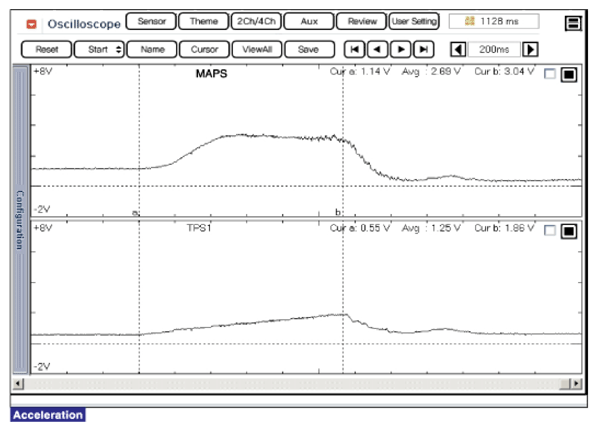

Signal Waveform
Signal Waveform
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
