Knock Sensor #1 (Bank 1)
WARNING: This page is about a different variant/trim than selected.
- Remove the LH engine mounting support bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

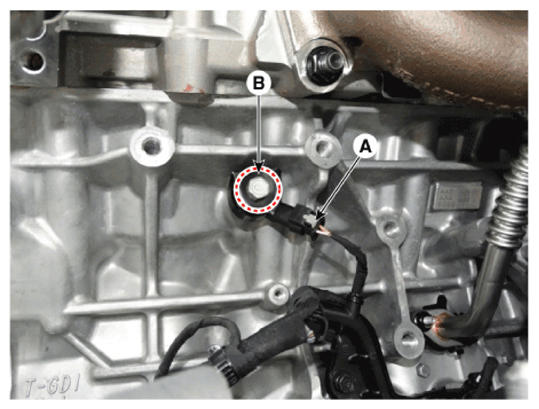

- Disconnect the knock sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor from the cylinder block.
