Bank 2/Sensor 2
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

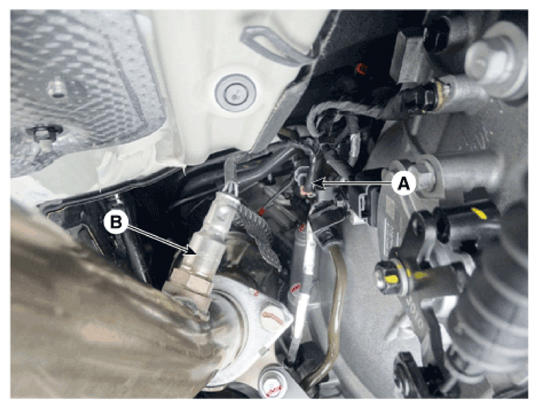

- Disconnect the connector (A), and then remove the sensor (B).
NOTE:
- Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
