Section 10 (Engine Control System - 3.3L)
>>
Engine Coolant Temperature Sensor (ECTS)
>>
Schematic Diagrams
>>

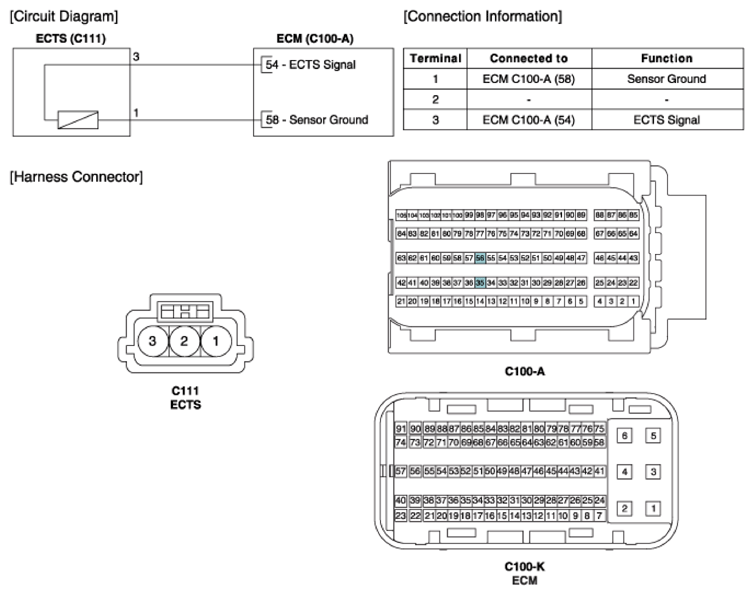

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
