Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery (-) terminal from the trunk room.
- Remove the engine cover.
- Remove the engine room cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

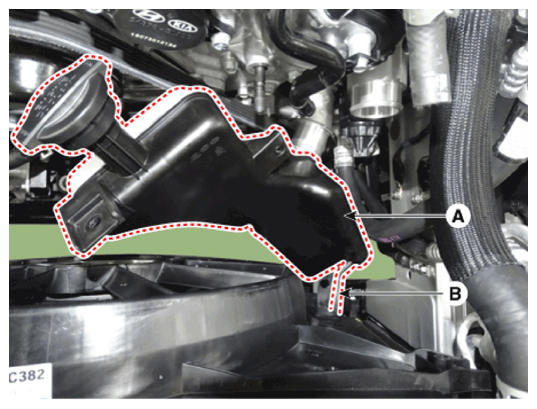

- Remove the reservoir tank (A) after loosening the mounting bolts from cooling fan. And then disconnect the over flow hose (B).
Tightening torque:
4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb-ft)
- To install, reverse the removal procedure.
