Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery (-) terminal from the trunk room.
- Loosen the drain plug and drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
- Remove the cooling fan.
(Refer to Cooling System - "COOLING FAN ")

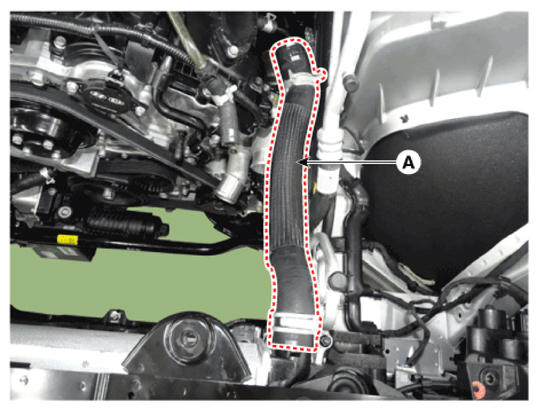

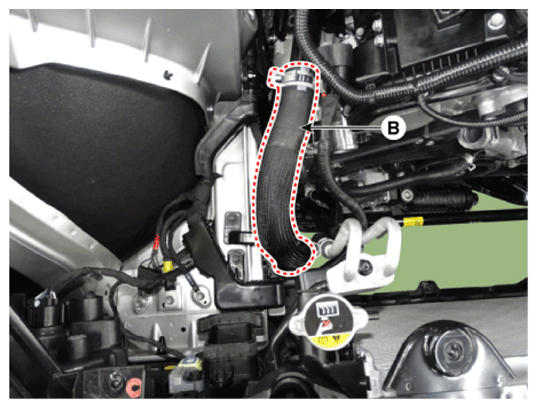

- Disconnect the radiator upper hose (A) and lower hose (B).

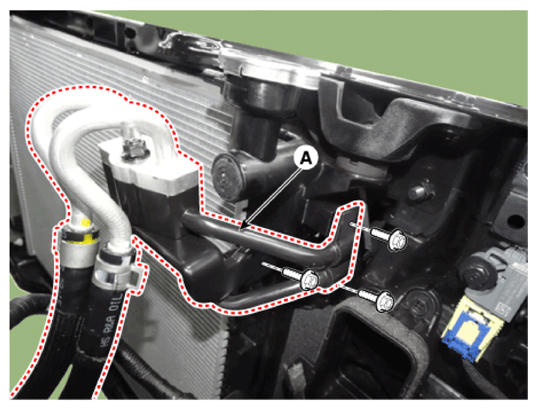

- Remove the ATF cooler pipe bracket (A).

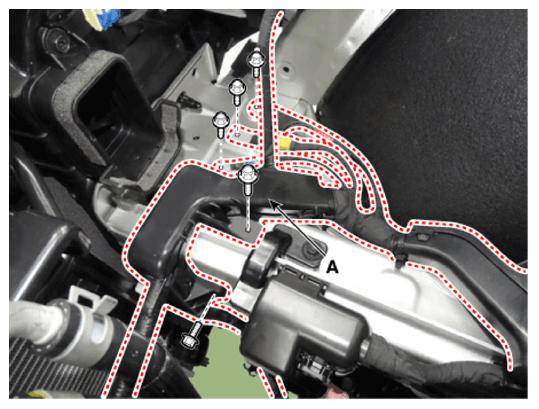

- Remove the alternator ground wiring protector (A).

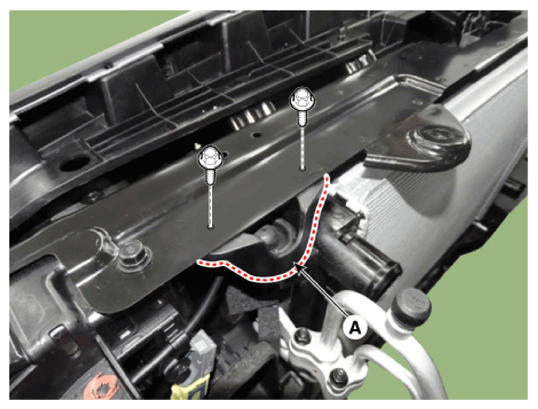

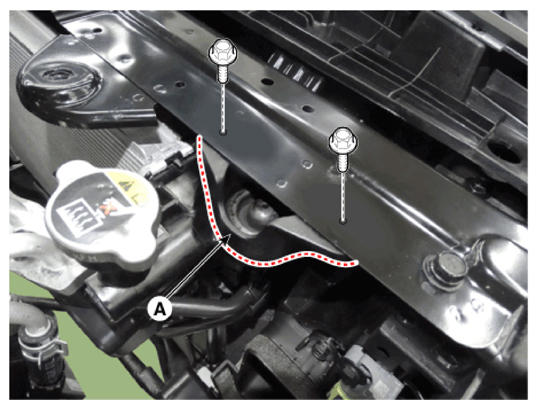

- Remove the radiator LH upper mounting bracket and RH upper mounting bracket (B).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 Ib-ft)

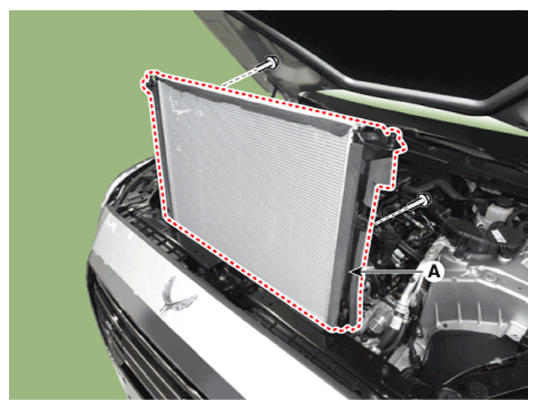

- Remove the fixing bolts (A) between the radiator assembly and the A/C condenser, and then remove the radiator (A) from the vehicle.
Tightening torque:
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 Ib-ft)
- To install, reverse the removal procedure.
- Fill the radiator with coolant.
(Refer to Cooling System - "COOLANT ")
- Start engine and check for leaks.
