Repair Procedures: Disassembly
WARNING: This page is about a different variant/trim than selected.

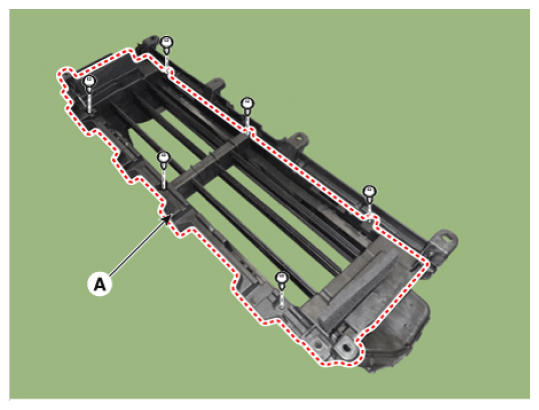

- Loosen the fixing screw and then remove the active air flap rear cover (A).
Tightening torque:
6.8 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|

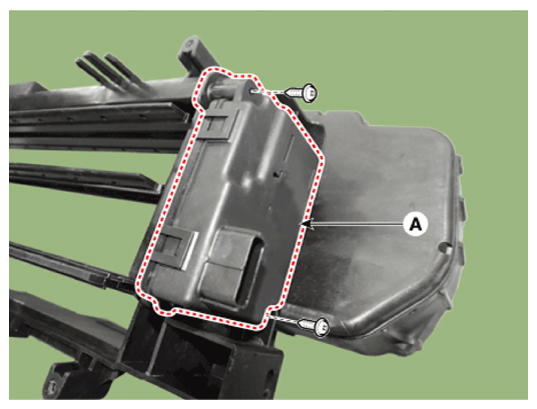

- Remove the active air actuator (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

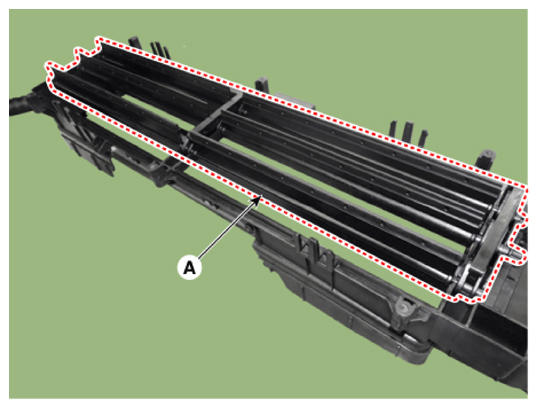

- Remove the Active Air Flat (AAF) (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- To install, reverse the removal procedure.
