Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

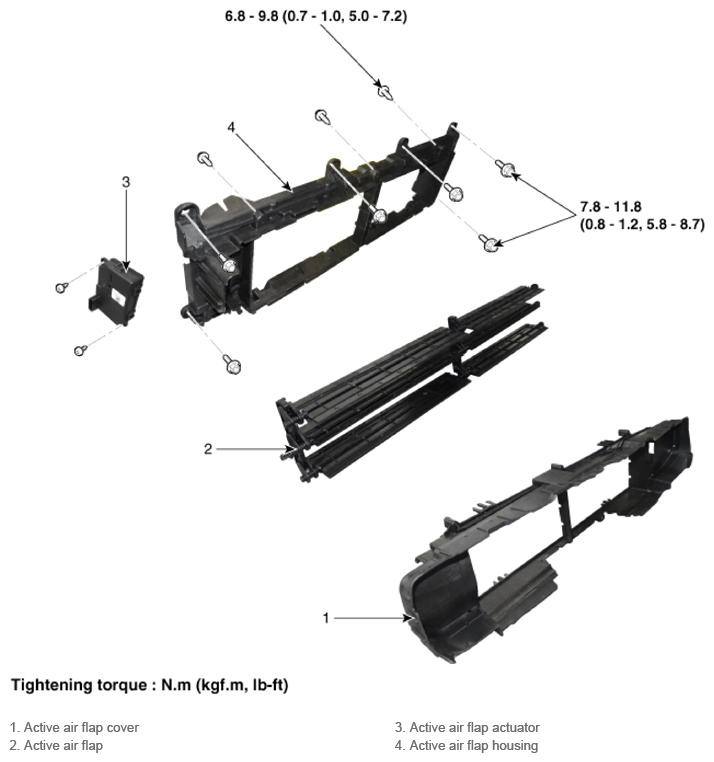

Fig 1: Active Air Flap Components Location With Torque Specification
G14207583Courtesy of HYUNDAI MOTOR AMERICA
