Repair Procedures: Removal
CAUTION:
- Apply the protective tape to the tool when disassembling the components with the screwdriver or remover.
- Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.
- Disconnect the negative (-) battery terminal.
- Remove the cluster upper panel and cluster fascia panel.
(Refer to Body - "CLUSTER FASCIA PANEL ")

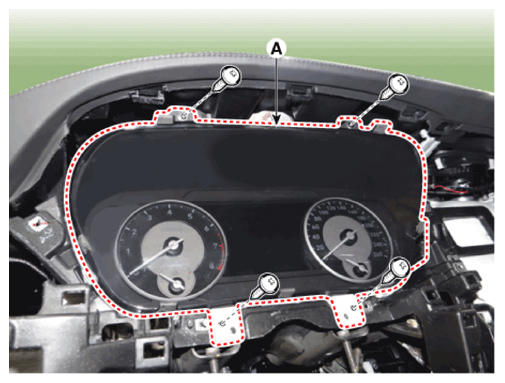

- Separate the instrument cluster (A) from the crash pad after loosening the mounting screws.

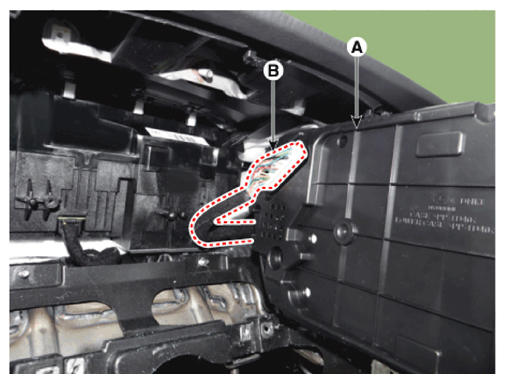

- Remover the instrument cluster (A) after disconnecting the cluster connector (B).
