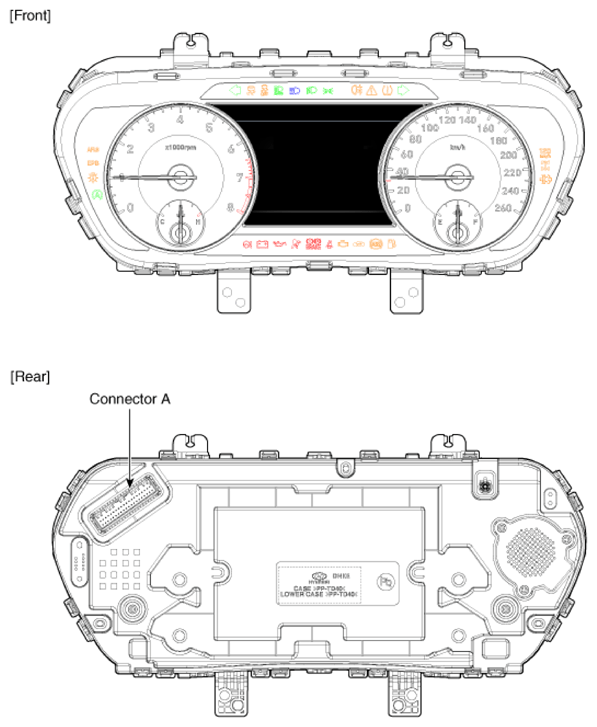

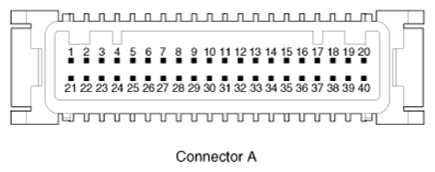

| 1 |
Ground |
| 2 |
Illumination (-) |
| 3 |
Rheostat switch (Down)_Input |
| 4 |
Rheostat switch (Up)_Input |
| 5 |
Detent_input |
| 6 |
Vehicle speed_input |
| 7 |
- |
| 8 |
- |
| 9 |
- |
| 10 |
Rear camera view switch_Input |
| 11 |
- |
| 12 |
Alternator_Input |
| 13 |
- |
| 14 |
Fuel sender (+)_Input |
| 15 |
- |
| 16 |
Fuel sender (-)_Input |
| 17 |
- |
| 18 |
AIR BAG (+)_Input |
| 19 |
- |
| 20 |
Tail lamp_Input |
| 21 |
Trip switch (-)_Input |
| 22 |
Trip switch 2 (+)_Input |
| 23 |
- |
| 24 |
- |
| 25 |
- |
| 26 |
- |
| 27 |
- |
| 28 |
Washer Level (Low)_Input |
| 29 |
Multimedia-CAN (Low) |
| 30 |
Multimedia-CAN (High) |
| 31 |
- |
| 32 |
Chassis-CAN (High) |
| 33 |
Chassis-CAN (Low) |
| 34 |
- |
| 35 |
Drive mode switch_Input |
| 36 |
Ground |
| 37 |
Ground |
| 38 |
LDC (B+)_Input |
| 39 |
Ignition 1 |
| 40 |
Battery (+) |
