Head Up Display Diagnosis
>>
DTC B1603-00: CAN Bus OFF
>>

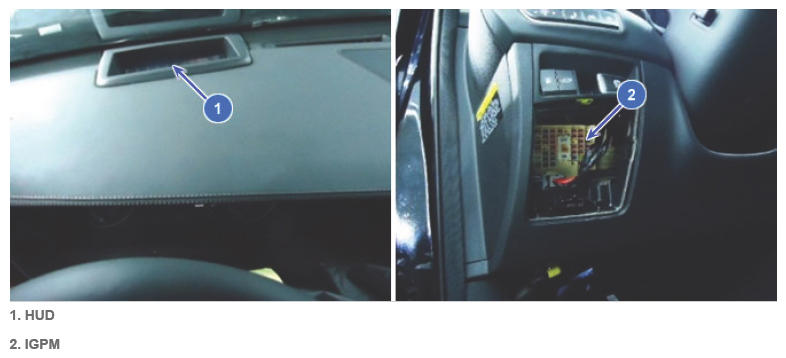

Component Location
Component Location
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
HUD (Head Up Display): "HUD-UP DISPLAY"
IGPM (Integrated Gateway & Power control Module): "IPS CONTROL MODULE" + "GATE WAY"
Courtesy of HYUNDAI MOTOR AMERICA
