Steering Column Shroud Upper Panel

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Lower the steering wheel.

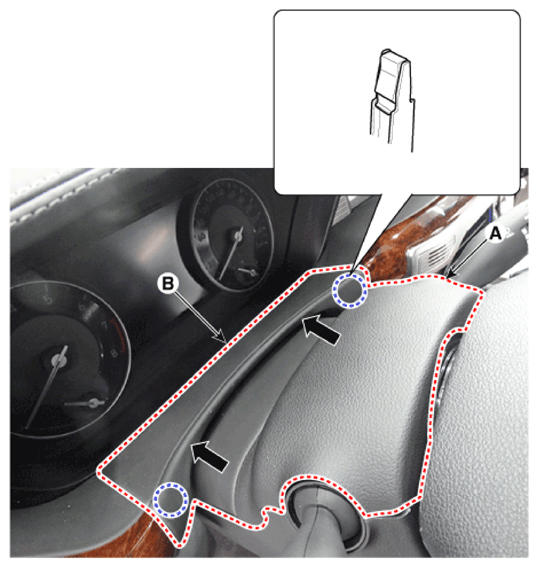

Using a screwdriver or remover, remove the steering column shroud upper panel (A).
Remove the cluster fascia lower panel (B) in the direction of the arrow.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damage clips.
