Removal And Installation

Disconnect the battery (-) terminal from the trunk room.
Remove the engine cover.
Remove the engine room cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the Cowl Top Cover.
(Refer to Body - "COWL TOP COVER ")

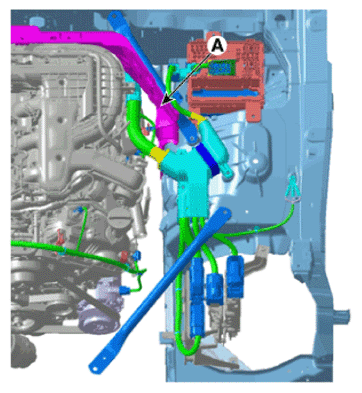

Remove the Engine room bulkhead (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the air cleaner assembly.
(Refer to Intake Exhaust System - "AIR CLEANER ")

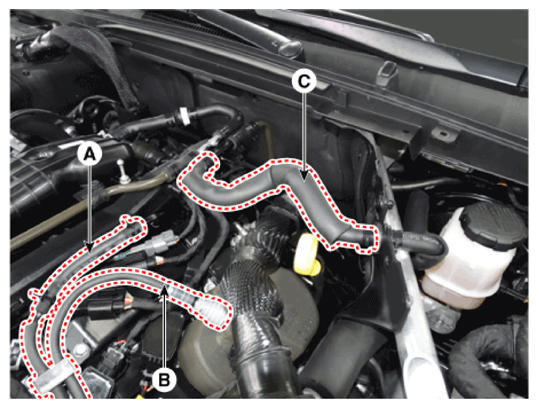

Disconnect the fuel hose (A, B) and Brake vacuum hose (C).

Courtesy of HYUNDAI MOTOR AMERICA

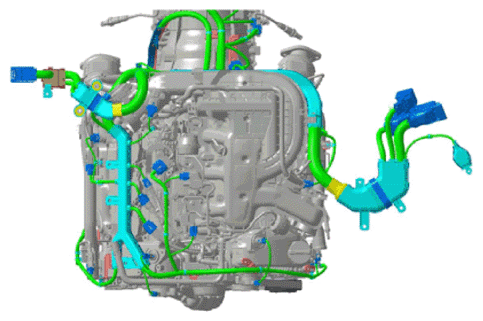

Disconnect the wiring connectors and harness clamps and remove the connector brackets around the surge tank.

Courtesy of HYUNDAI MOTOR AMERICA

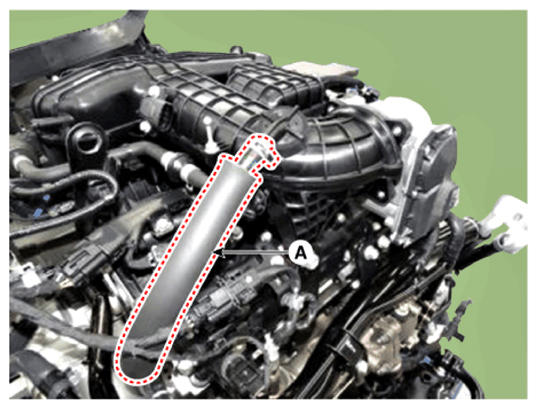

Disconnect the breather hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

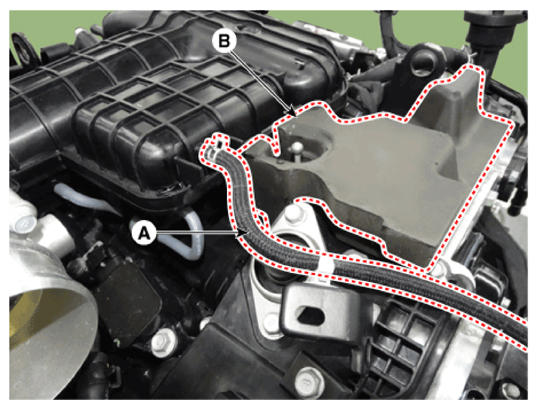

Disconnect the vacuum hose (A), styrofoam (B).

Courtesy of HYUNDAI MOTOR AMERICA

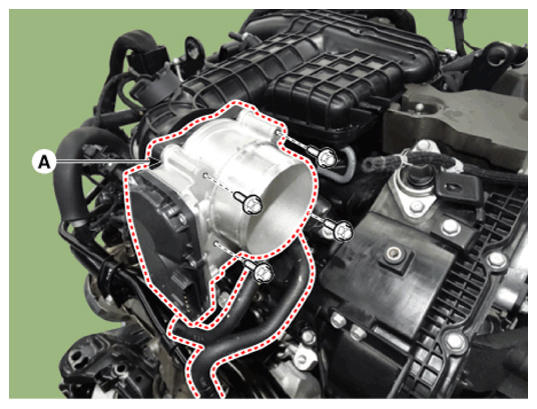

Remove the throttle body assembly (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

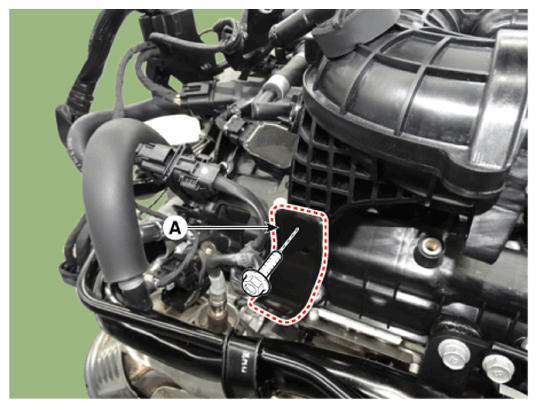

Remove the surge tank fixing bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

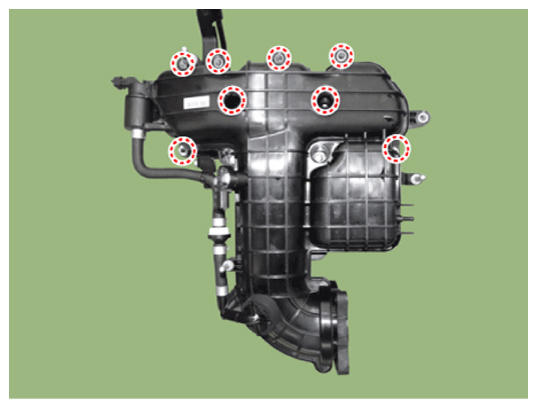

Remove the surge tank (A).
Tightening torque

Step 1: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Step 2: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Tighten the surge tank bolts in two or three steps.
To install, reverse the removal procedure.
