Remove And Installation
- Disconnect the battery (-) terminal from the trunk room.

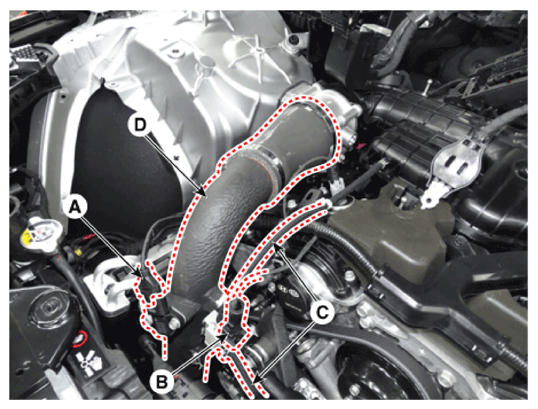

- Disconnect the boost pressure sensor (A), PCV connector (B), vacuum hose (C) and then remove the intercooler outlet hose (D).

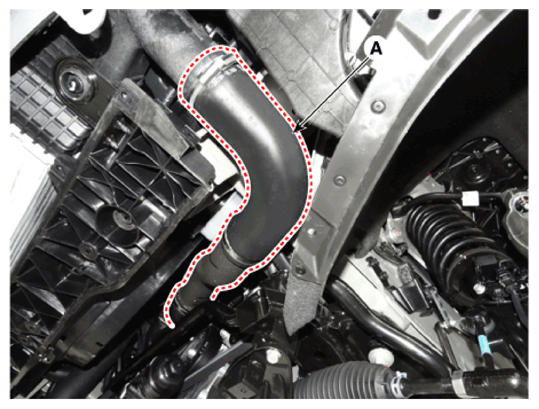

- Remove the intercooler inlet hose (A).
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER ")

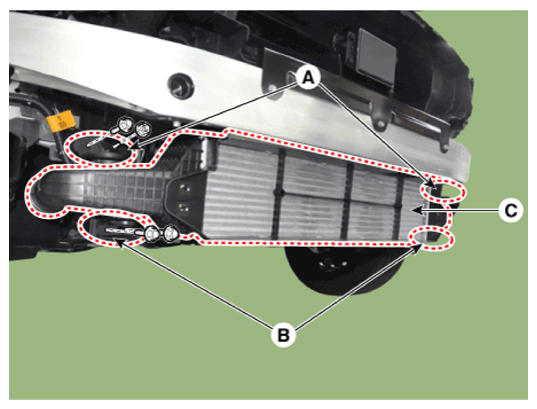

- Remove the intercooler upper mounting bracket (A), lower bracket (B) and then remove the intercooler assembly (C).
Tightening torque:
10.7 - 11.7 N.m (1.1 - 1.2 kgf.m, 7.9 - 8.6 Ib-ft)
- To install, reverse the removal procedure.
