Components And Components Location: Components

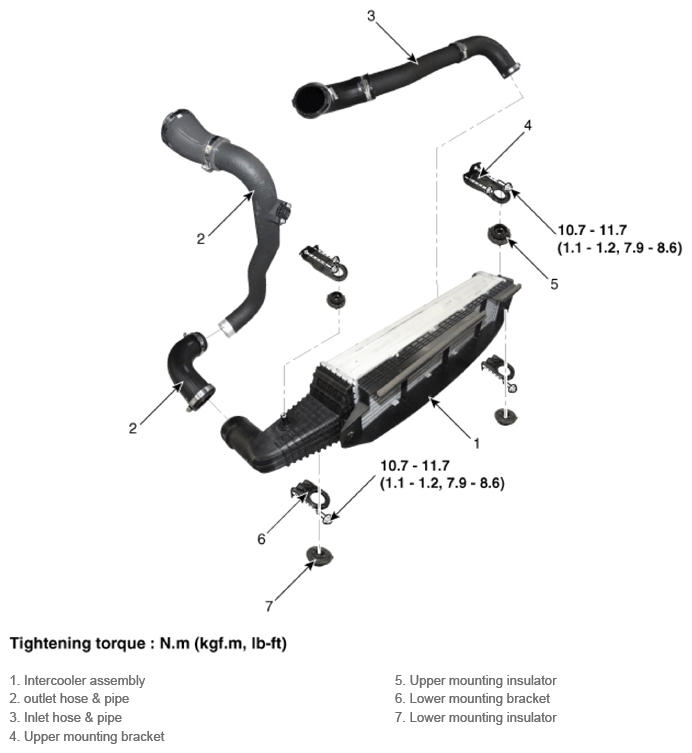

Fig 1: Intercooler Components Location With Torque Specification

G14207662

Courtesy of HYUNDAI MOTOR AMERICA
