Components And Components Location: Components

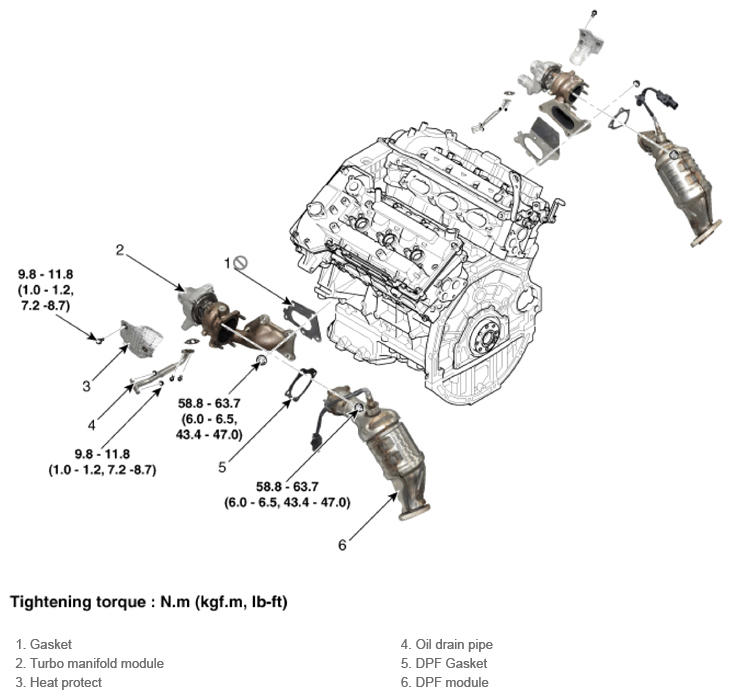

Fig 1: Exhaust Manifold And Catalytic Converter Components Location With Torque Specification

G14207648

Courtesy of HYUNDAI MOTOR AMERICA
