Air Cleaner Element

  1. Disconnect the battery (-) terminal from the trunk room.
  2. Remove the engine cover.

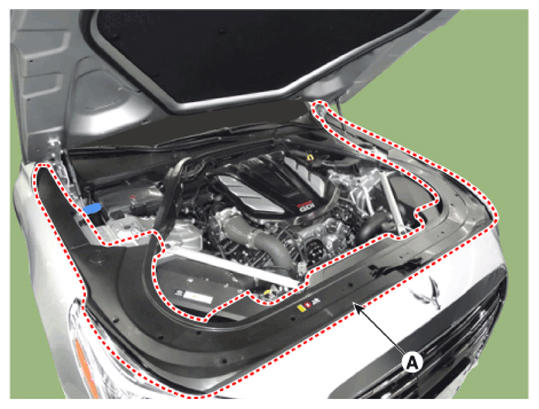

  3. Remove the front strut bar (A).
    G14207632Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the retaining clips air cleaner cover, and then the air cleaner element (A).

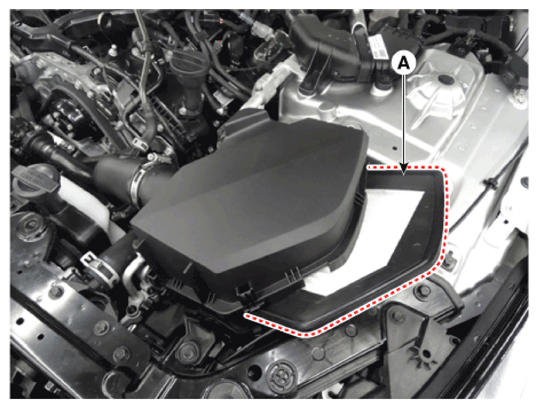

    [LH]

    G14207633Courtesy of HYUNDAI MOTOR AMERICA

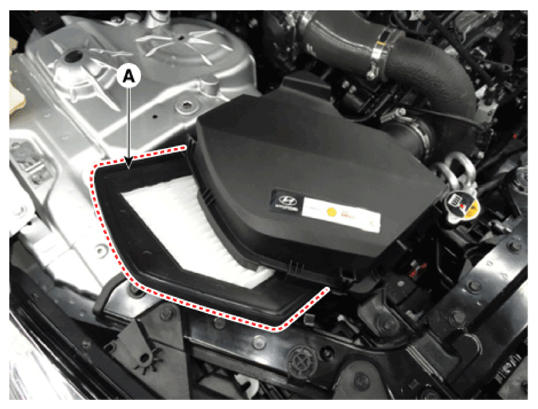

    [RH]

    G14207634Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
