Air Cleaner Assembly

  1. Disconnect the battery (-) terminal from the trunk room.
  2. Remove the engine cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

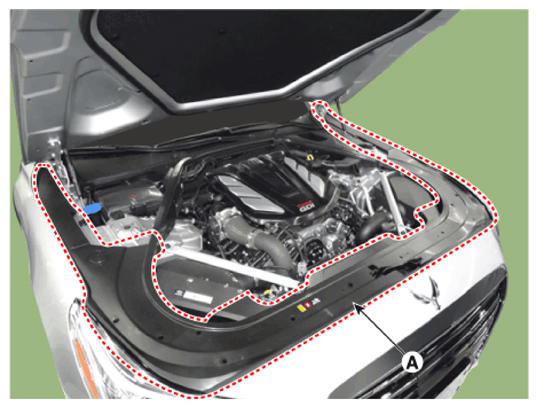

  3. Remove the front strut bar (A).
    G14207629Courtesy of HYUNDAI MOTOR AMERICA

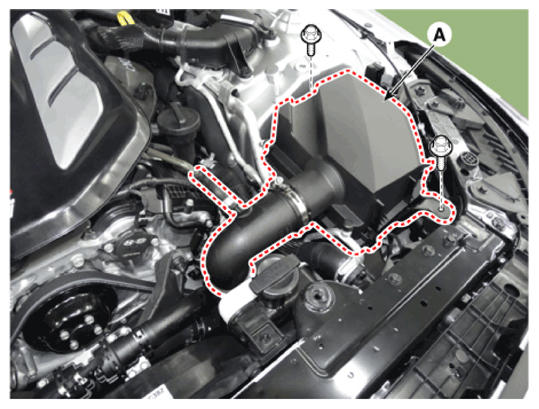

  4. Remove the air intake hose and air cleaner assembly.

    [LH]

    G14207630Courtesy of HYUNDAI MOTOR AMERICA

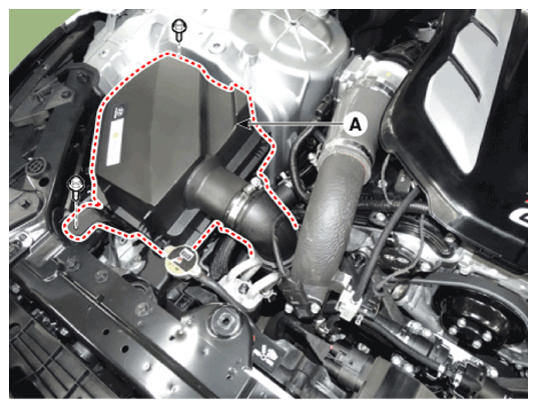

    [RH]

    G14207631Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
