Components And Components Location: Components: [LH]

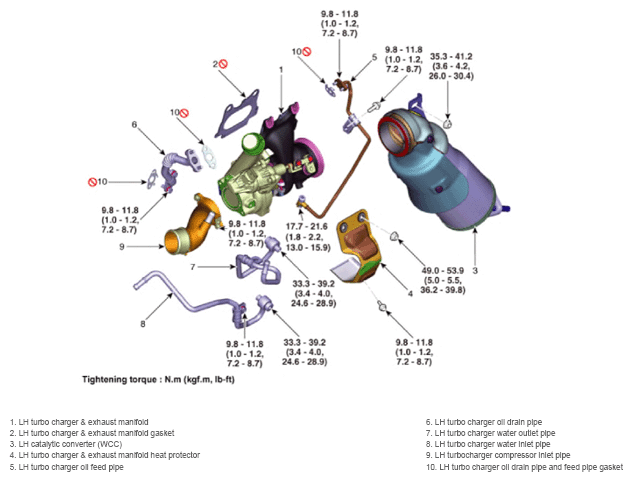

Fig 1: Turbo Charger & Exhaust Manifold w/ Catalytic Converter Components Location With Torque Specification (LH)

G15555956

Courtesy of HYUNDAI MOTOR AMERICA
