Rear Muffler

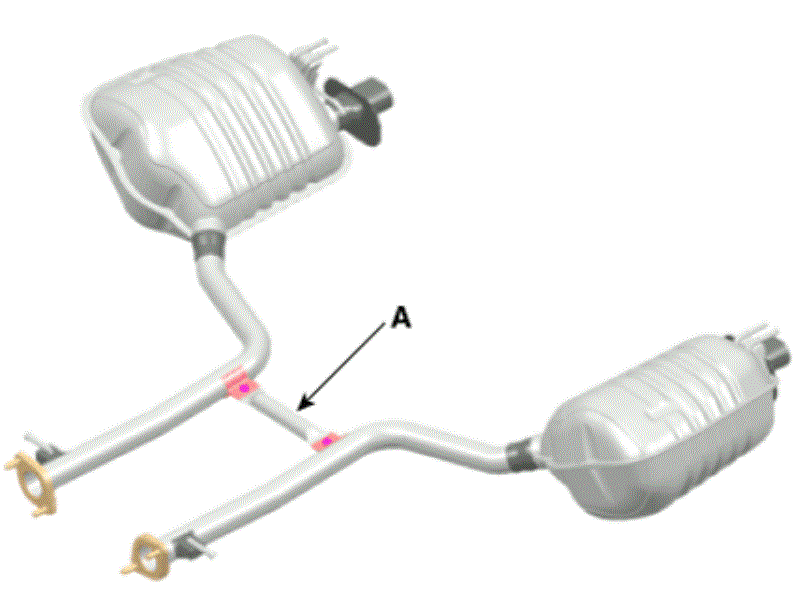

Remove the rear muffler stay bracket (A).
Tightening torque:

29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

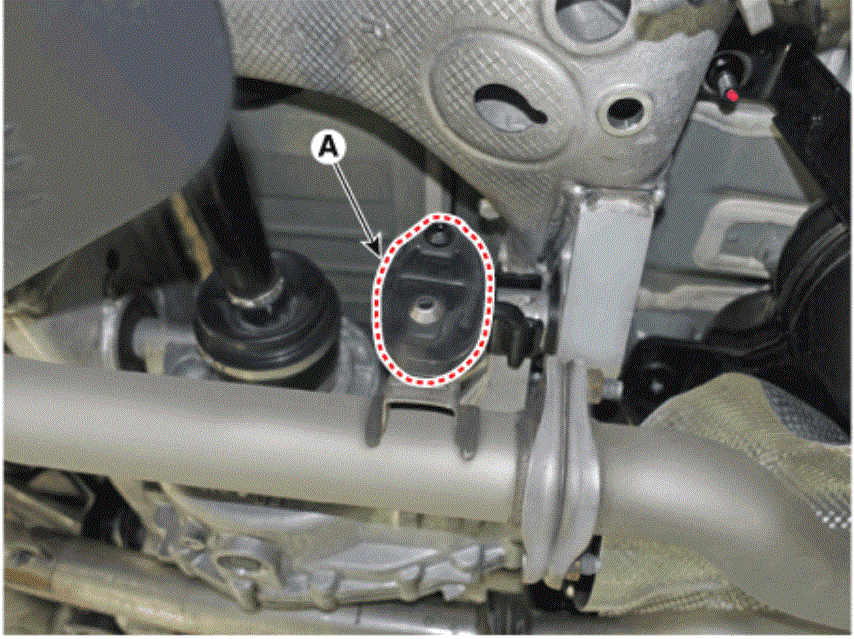

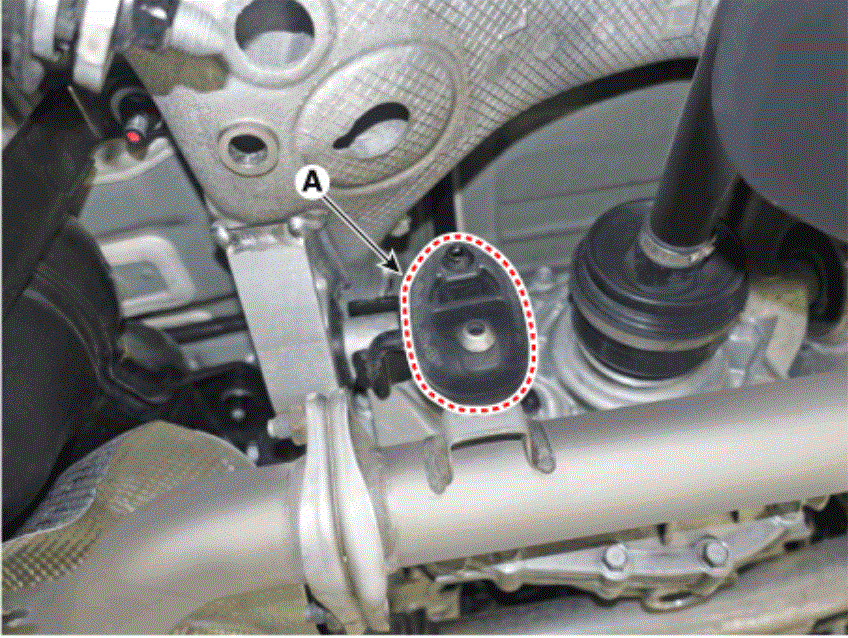

Remove the muffler hanger (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

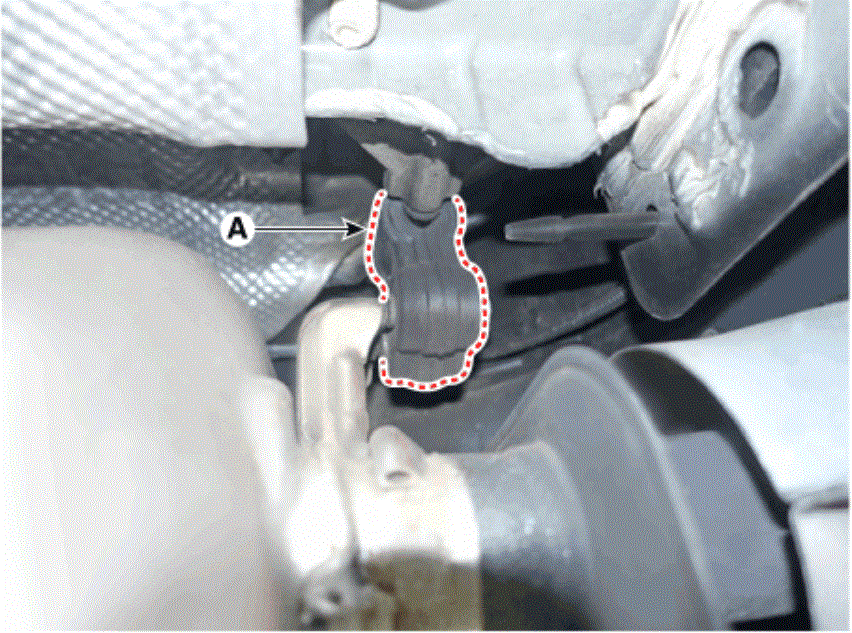

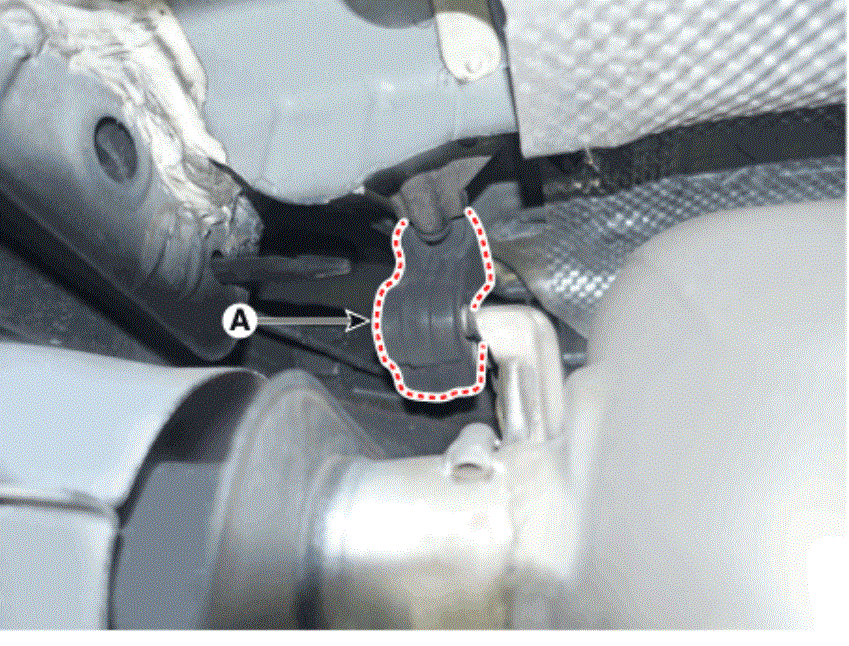

Remove the muffler hanger (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

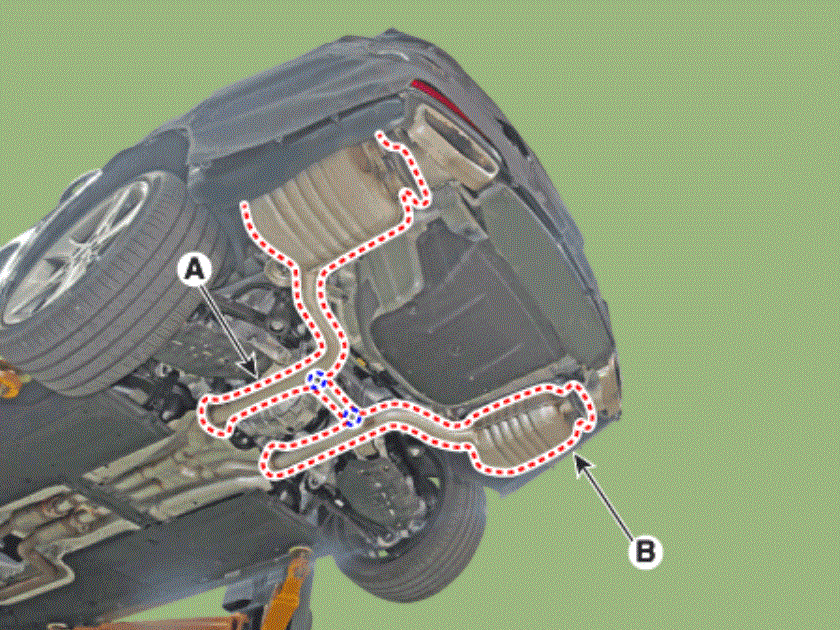

Remove the LH rear muffler (A) and RH rear muffler (B).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- When installing, replace with new gaskets.
