RH air cleaner element replacement

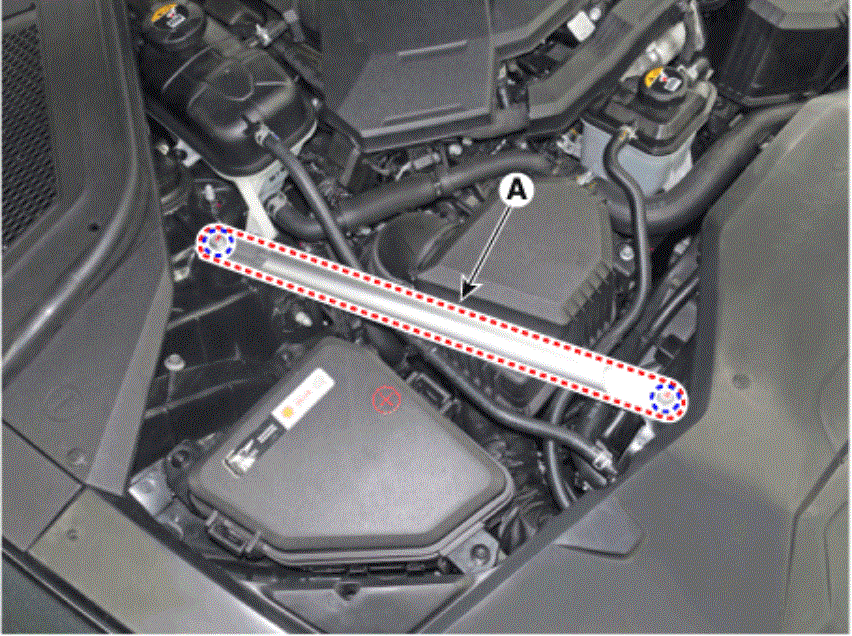

  1. Remove the RH front strut bar (A).
    G15555926Courtesy of HYUNDAI MOTOR AMERICA

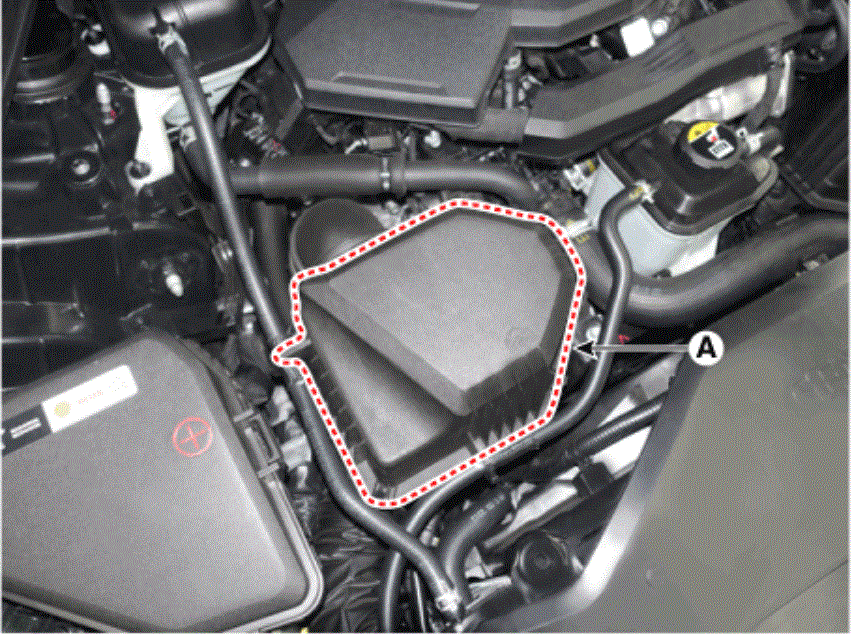

  2. Open the RH air cleaner element cover (A) by unlocking the clamp.
    G15555927Courtesy of HYUNDAI MOTOR AMERICA

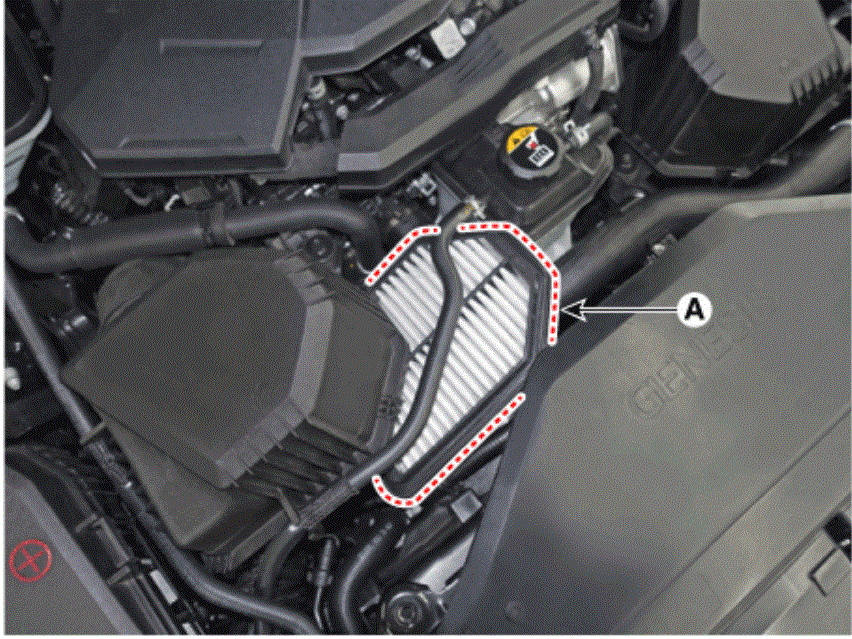

  3. Replace the RH air cleaner element (A) with a new one.
    G15555928Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.

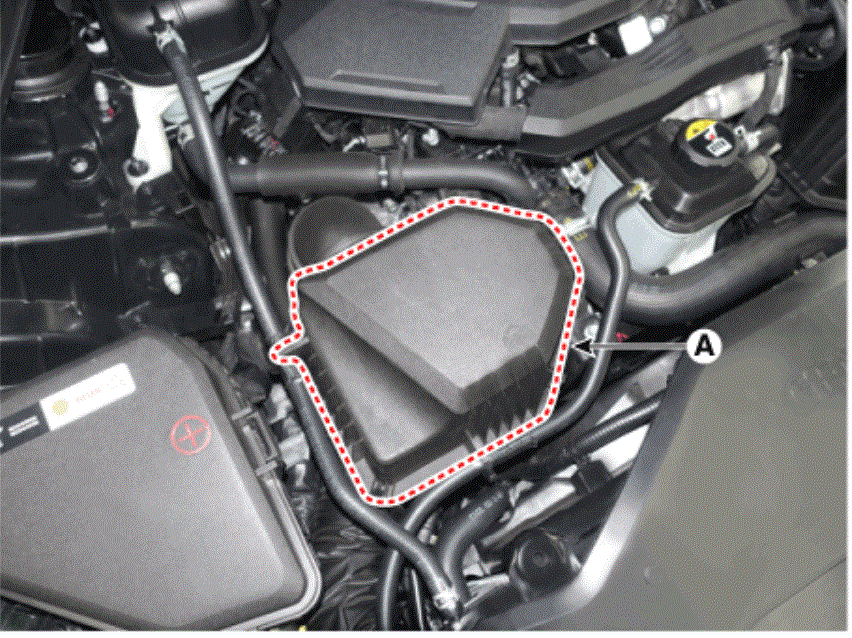

  4. Close the RH air cleaner element cover (A) by hooking the clamps.
    G15555929Courtesy of HYUNDAI MOTOR AMERICA
