LH air cleaner element replacement

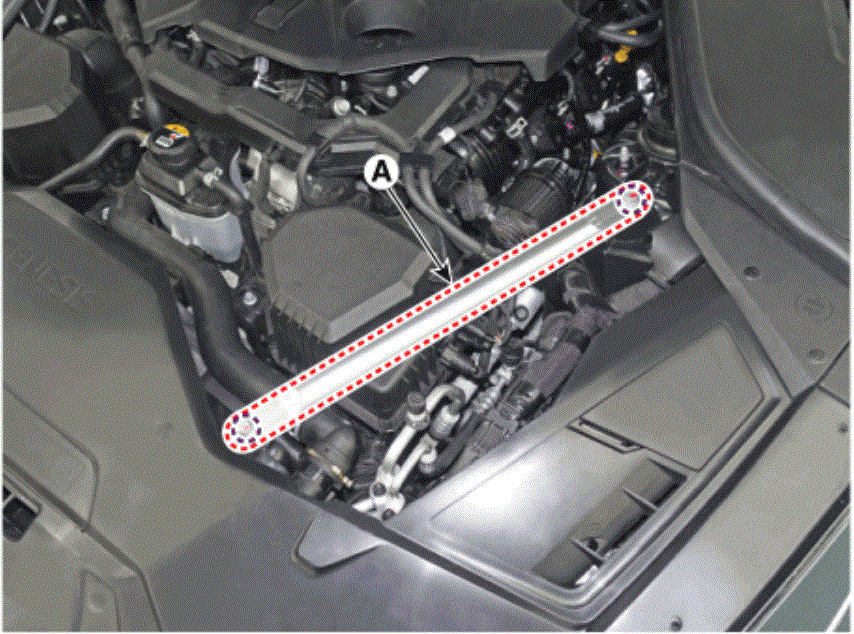

  1. Remove the LH front strut bar (A).
    G15555922Courtesy of HYUNDAI MOTOR AMERICA

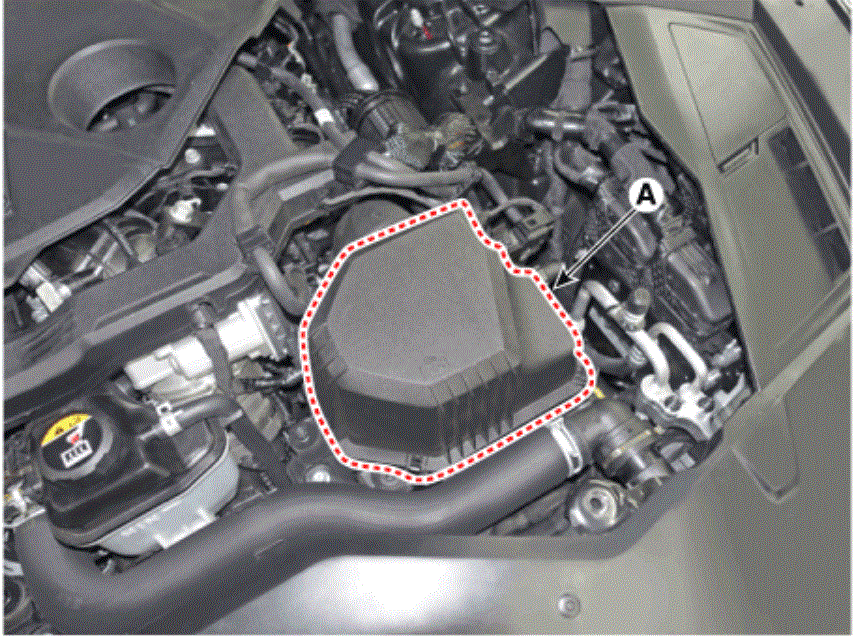

  2. Open the LH air cleaner element cover (A) by unlocking the clamp.
    G15555923Courtesy of HYUNDAI MOTOR AMERICA

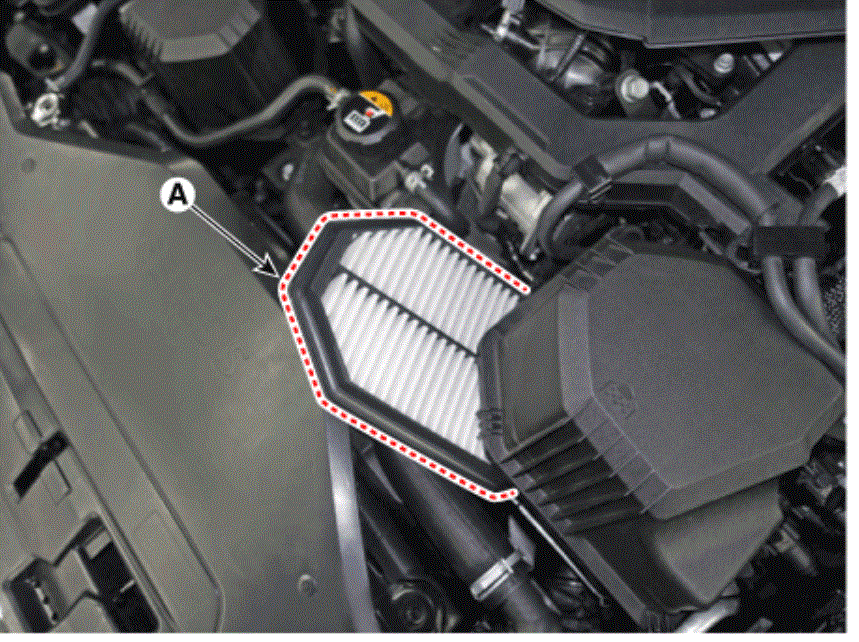

  3. Replace the LH air cleaner element (A) with a new one.
    G15555924Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.

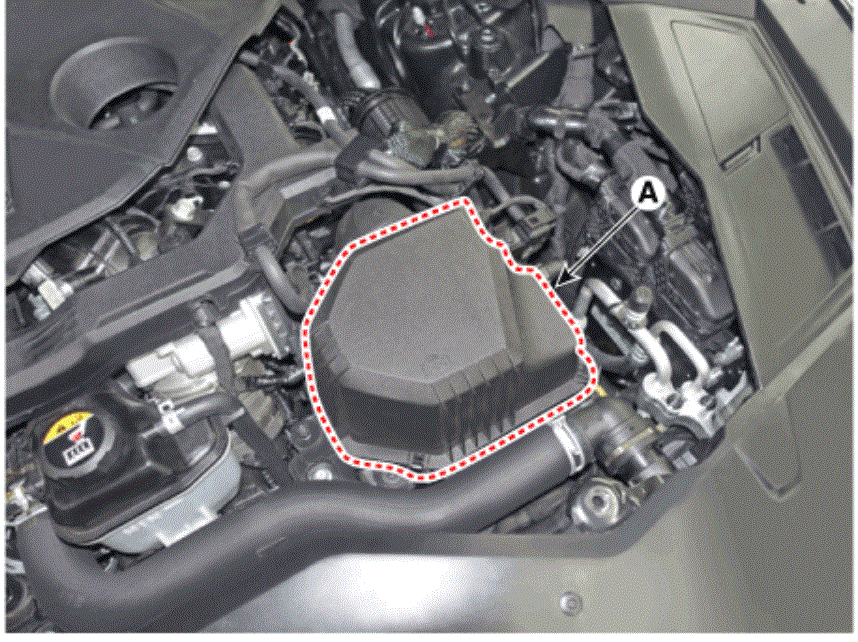

  4. Close the LH air cleaner element cover (A) by hooking the clamps.
    G15555925Courtesy of HYUNDAI MOTOR AMERICA
