RH air cleaner assembly

  1. Disconnect the battery negative terminal from the trunk room.

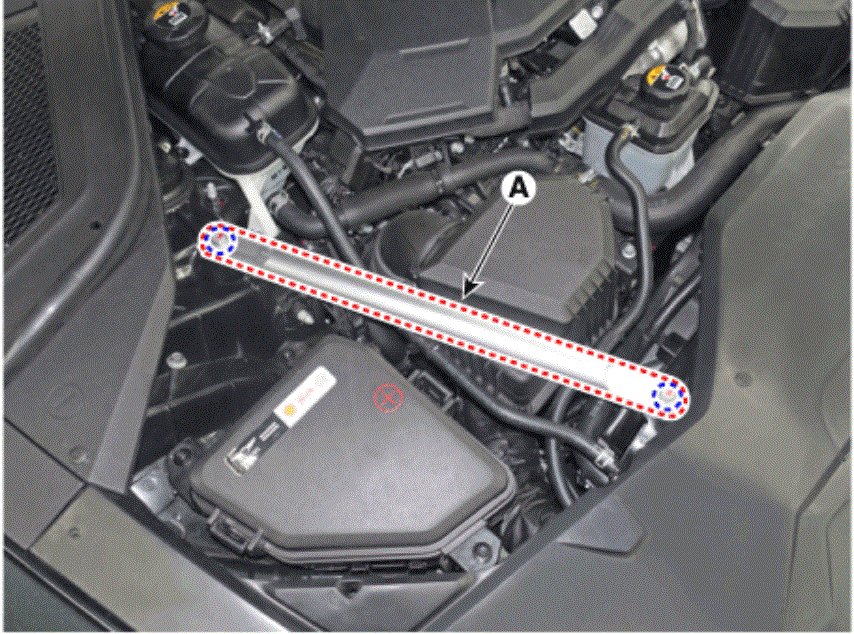

  2. Remove the RH front strut bar (A).
    G15555920Courtesy of HYUNDAI MOTOR AMERICA

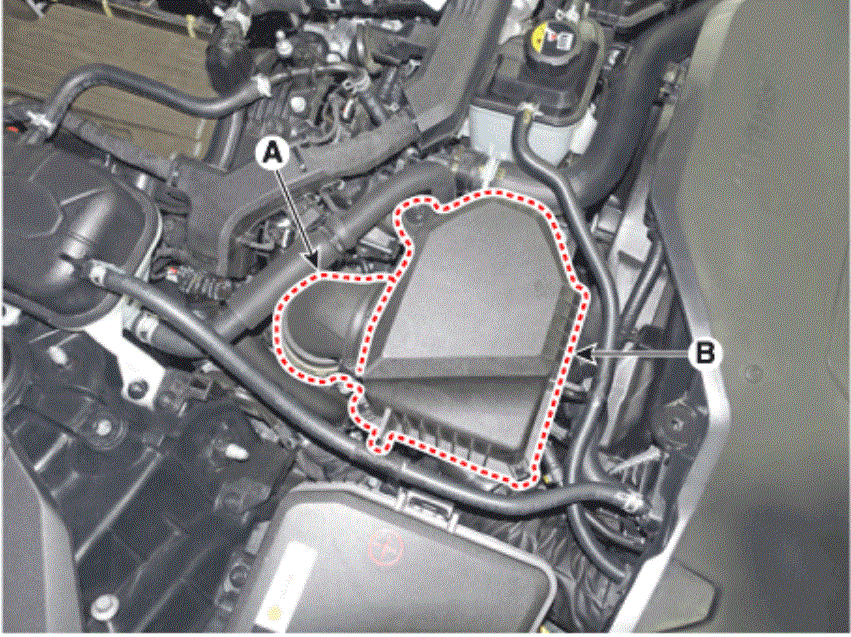

  3. Remove the RH air cleaner assembly.
    1. Disconnect the RH air intake hose (A).

      Tightening torque:

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft)

    2. Remove the RH air cleaner assembly (B).

      Tightening torque:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

      G15555921Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
