LH air cleaner assembly

Disconnect the battery negative terminal from the trunk room.

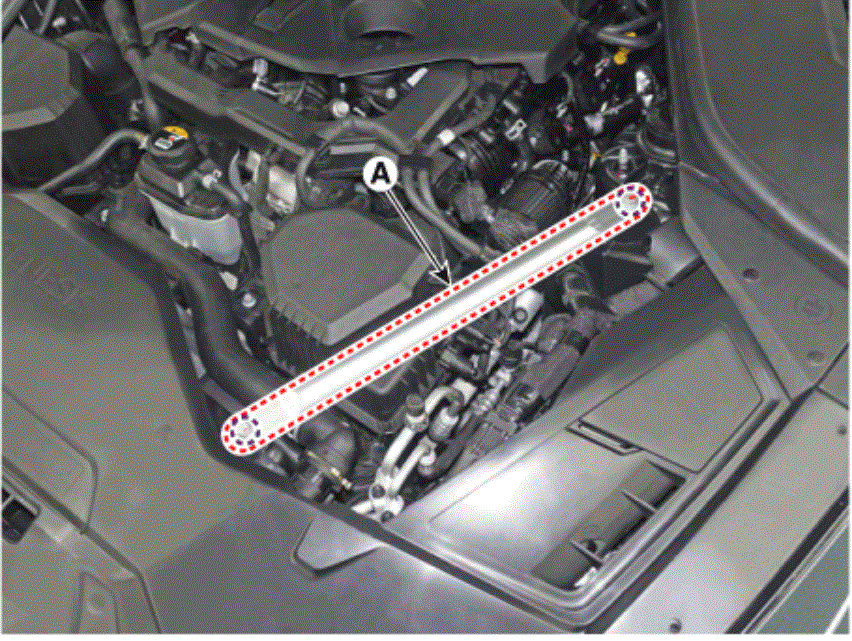

Remove the LH front strut bar (A).

Courtesy of HYUNDAI MOTOR AMERICA

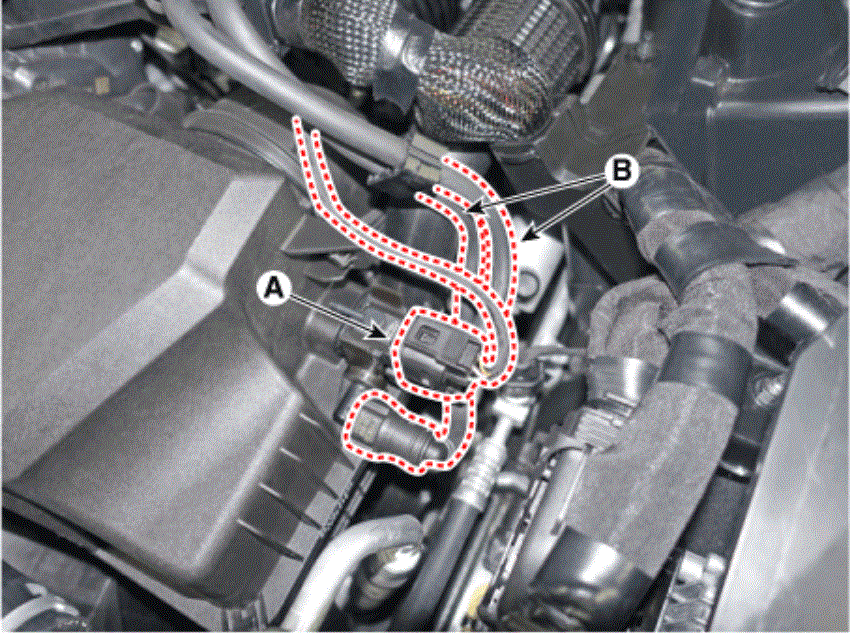

Disconnect the dual purge connector (A) and dual purge hose (B).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the LH air cleaner assembly.

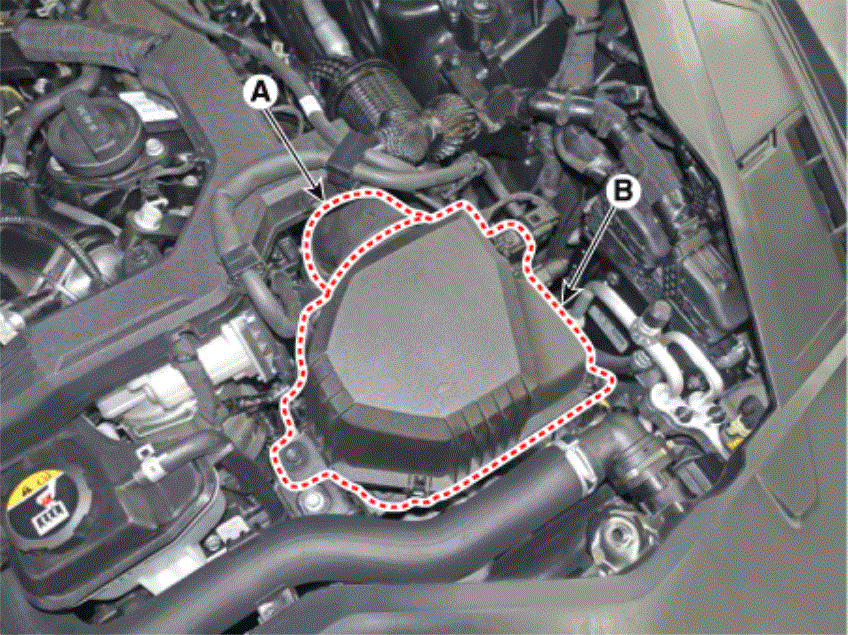

Disconnect the LH air intake hose (A).
Tightening torque:

2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft)

Remove the LH air cleaner assembly (B).

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
