12.3" 3D Display

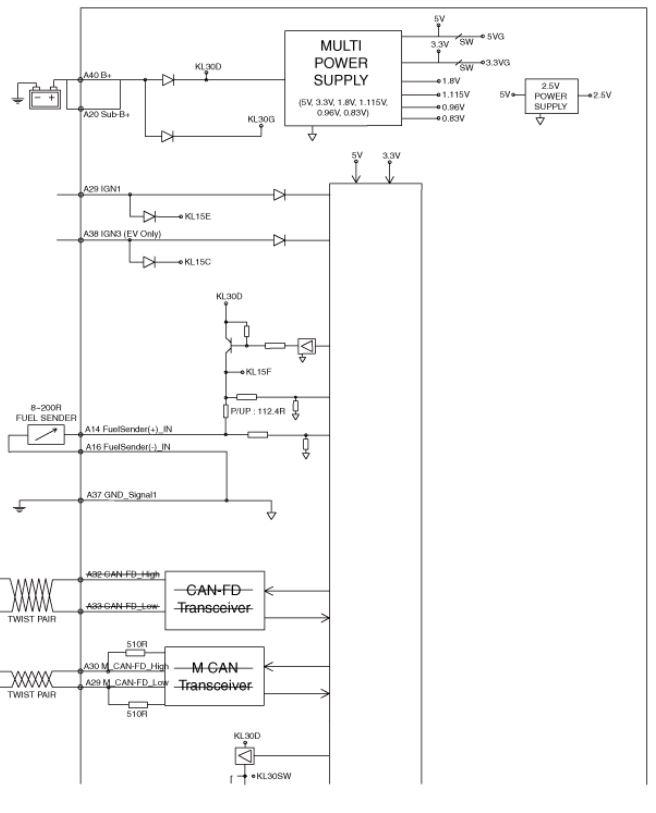

G15550214Courtesy of HYUNDAI MOTOR AMERICA

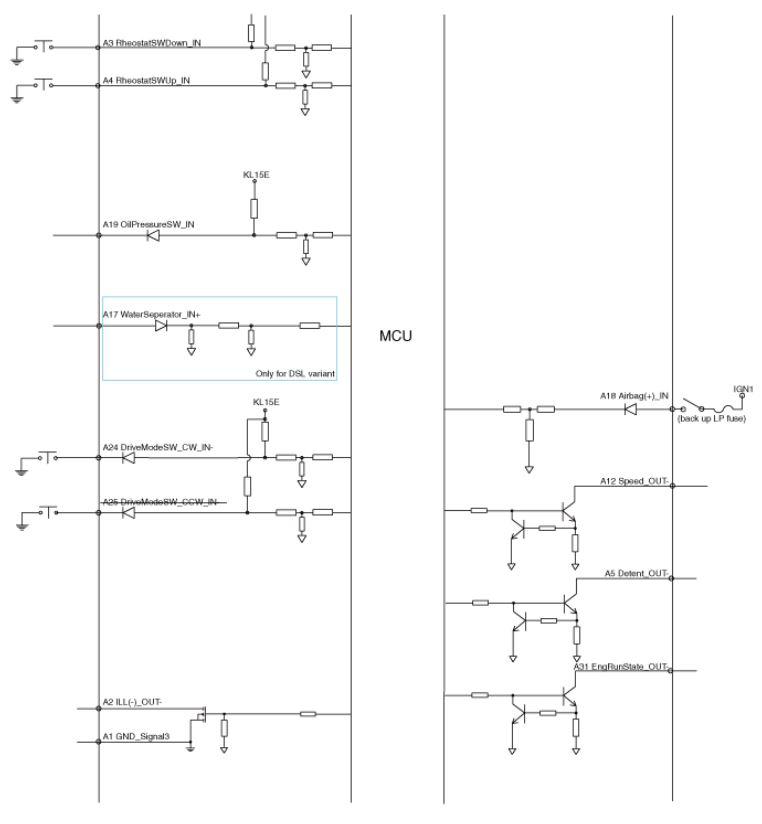

G15550215Courtesy of HYUNDAI MOTOR AMERICA

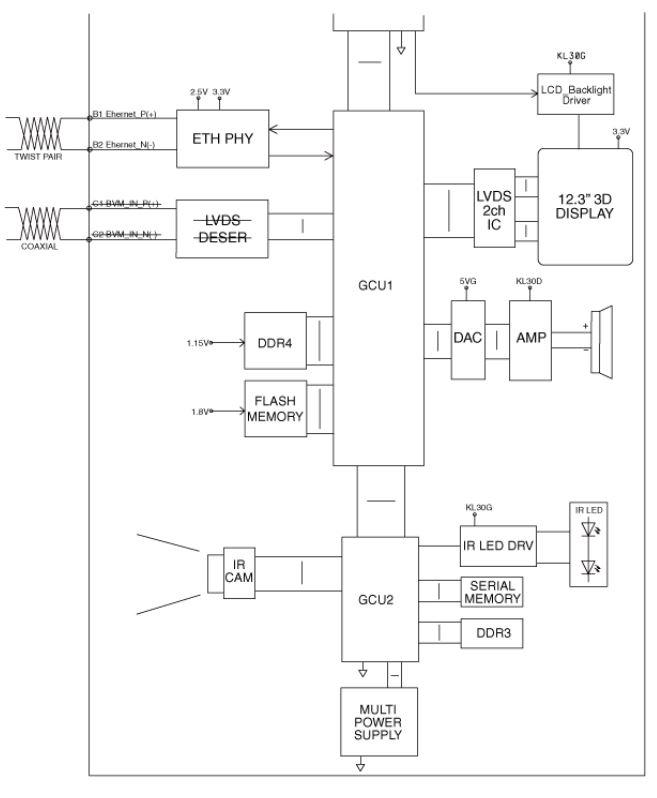

G15550216Courtesy of HYUNDAI MOTOR AMERICA
