Components And Components Location: Components

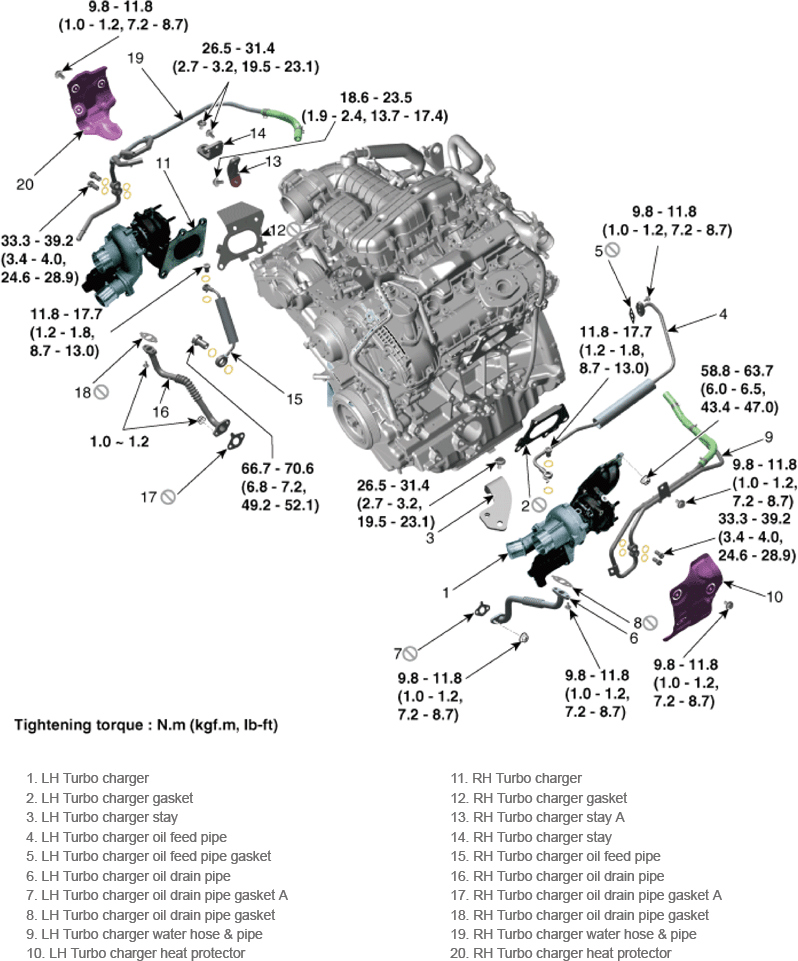

Fig 1: Turbocharger And Exhaust Manifold Components Location With Torque Specifications

G14178981

Courtesy of HYUNDAI MOTOR AMERICA
