Rear Muffler

  1. Detach the hanger (A) from the rear muffler and then remove the rear muffler (B).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

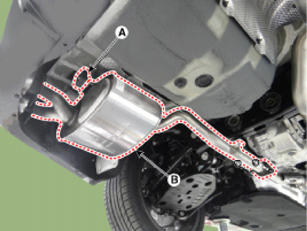

    G14179035Courtesy of HYUNDAI MOTOR AMERICA

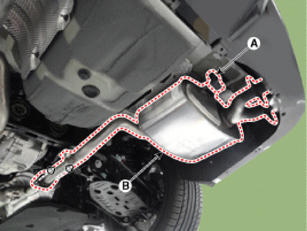

    G14179036Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
    NOTE:
    • Always use a new muffler gasket.
