Center Muffler

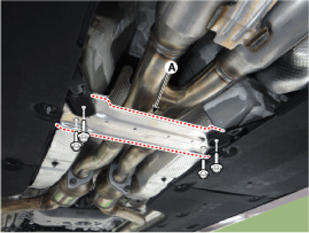

  1. Remove the tunnel stay (A).
    G14179033Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the front muffler.
  3. Remove the center muffler (A).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

    G14179034Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
    NOTE:
    • Always use a new muffler gasket.
