Components And Components Location: Components

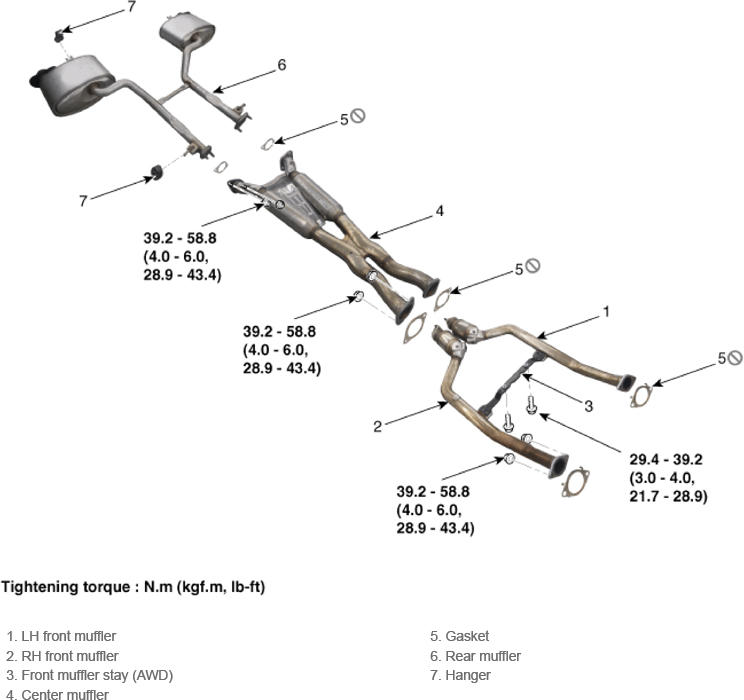

Fig 1: Muffler And Catalytic Converter Components Location With Torque Specifications

G14179028

Courtesy of HYUNDAI MOTOR AMERICA
