Home >> Genesis >> 2021 >> G70 3.3T, RWD >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Intake And Exhaust System - 3.3L >> Intercooler >> Components And Components Location >> Components

Components And Components Location: Components

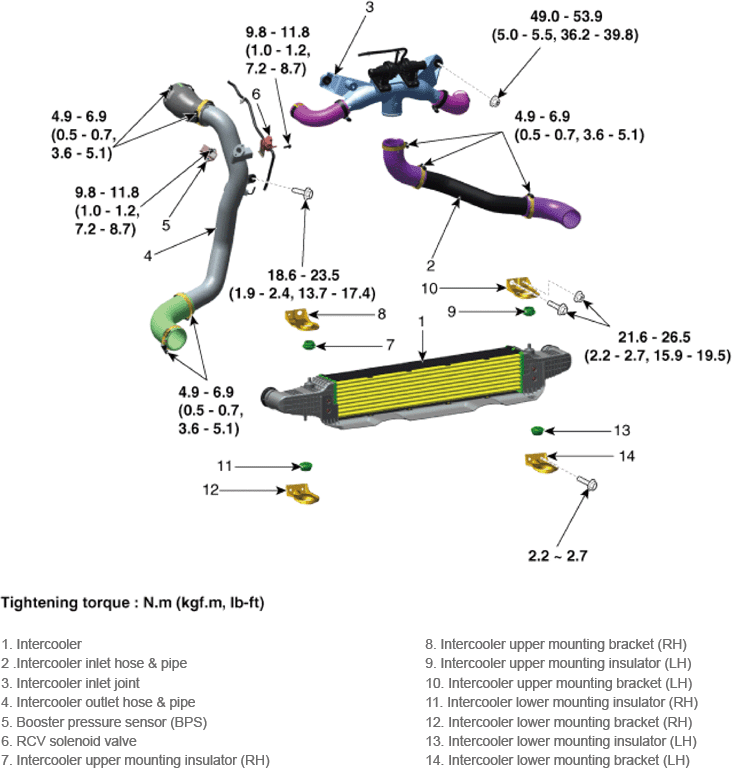

Fig 1: Intercooler Components Location With Torque Specifications

G14178960

Courtesy of HYUNDAI MOTOR AMERICA
